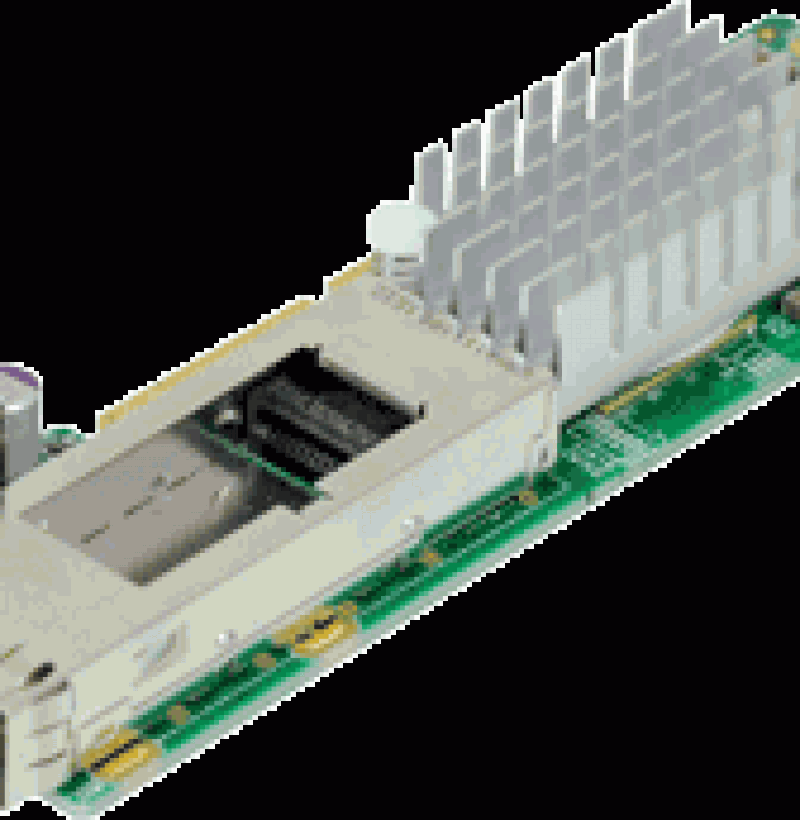

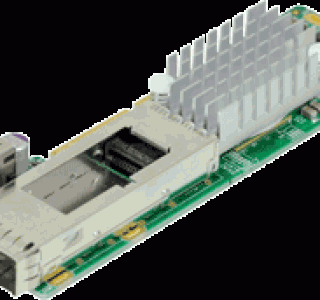

AOC-CIBF-m1

AOC-CIBF-m1

Giá bán (chưa VAT): 0

Thương hiệu: Supermicro

Bảo hành: 12 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

MicroLP InfiniBand FDR Adapter

SPECS

Part Number AOC-CIBF-m1
Description MicroLP InfiniBand FDR Adapter
Add-on-Card Compact and Powerful InfiniBand FDR Adapter
The AOC-CIBF-m1 is the most compact, yet powerful, InfiniBand adapter in the market. Based on Mellanox® ConnectX-3 with Virtual Protocol Interconnect (VPI), it provides the highest performing and most flexible interconnect solution for servers used in Enterprise Data Centers and High-Performance Computing. The AOC-CIBF-m1 simplifies the system development by serving both InfiniBand and Ethernet fabrics in one hardware design. The AOC-CIBF-m1 is designed in a small microLP form factor to fit Supermicro Twin server systems.
This product is only available through Supermicro.
To order, contact your distributor.
Compliance RoHS Compliant 6/6, Pb Free
Compatibility Matrices Servers: Supermicro MicroCloud and Twin Server Systems with microLP expansion slot See MicroLP Compatibility Matrix
Cables & Transceivers: Networking Cables & Transceivers
Specification  • General
   - Mellanox® ConnectX-3 FDR controller
   - Compact size microLP form factor
   - Single QSFP port and dual USB 2.0 ports
   - PCI-E 3.0 x8 (8GT/s) interface
• Connectivity
   - Interoperable with InfiniBand or 10/40GbE switches
   - Passive copper cable with ESD protection
   - Powered connectors for optical and active cable support
• InfiniBand
   - IBTA Specification 1.2.1 compliant
   - Hardware-based congestion control
   - 16 million I/O channels
   - 256 to 4Kbyte MTU, 1Gbyte messages
• Enhanced InfiniBand
   - Hardware-based reliable transport
   - Collective operations offloads
   - GPU communication acceleration
   - Hardware-based reliable multicast
   - Extended Reliable Connected transport
   - Enhanced Atomic operations
• Ethernet
   - IEEE Std 802.3ae 10 Gigabit Ethernet
   - IEEE Std 802.3ba 40 Gigabit Ethernet
   - IEEE Std 802.3ad Link Aggregation and Failover
   - IEEE Std 802.3az Energy Efficient Ethernet
   - IEEE Std 802.1Q, .1p VLAN tags and priority
   - IEEE Std 802.1Qau Congestion Notification
   - IEEE P802.1Qaz D0.2 ETS
   - IEEE P802.1Qbb D1.0 Priority-based Flow Control
   - Jumbo frame support (9.6KB)
• Hardware-based I/O Virtualization
   - Single Root IOV
   - Address translation and protection
   - Dedicated adapter resources
   - Multiple queues per virtual machine
   - Enhanced QoS for vNICs
   - VMware NetQueue support
• Manageability Features
   - Additional CPU Offloads
   - RDMA over Converged Ethernet
   - TCP/UDP/IP stateless offload
   - Intelligent interrupt coalescence
• Flexboot™ Technology
   - Remote boot over InfiniBand
   - Remote boot over Ethernet
   - Remote boot over iSCSI
• Protocol Support
   - Open MPI, OSU MVAPICH, Intel MPI, MS
   - MPI, Platform MPI
   - TCP/UDP, EoIB, IPoIB, SDP, RDS
   - SRP, iSER, NFS RDMA
   - uDAPL
• Operating Systems/Distributions
   - Novell SLES, Red Hat Enterprise Linux (RHEL),
     and other Linux distributions
   - Microsoft Windows Server 2008/CCS 2003, HPC Server 2008
   - OpenFabrics Enterprise Distribution (OFED)
   - OpenFabrics Windows Distribution (WinOF)
   - VMware ESX Server 3.5, vSphere 4.0/4.1
• Operating Conditions
   - Operating temperature: 0°C to 55°C (32°F to 131°F)
• Physical Dimensions (L x W)
   - Card PCB dimensions (without end brackets):
     12.32cm (4.85in) x 3.90cm (1.54in)
Qty 1
