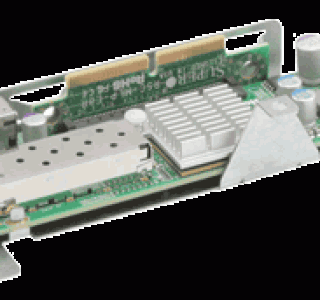

AOM-CTG-i1SM 10 Gigabit Ethernet Adapter
Part Number | AOM-CTG-i1SM |
Description | AOM-CTG-i1SM 10 Gigabit Ethernet Adapter |
Add-on-Module | The AOM-CTG-i1SM 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOM-CTG-i1SM addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance. This product is only available through Supermicro. To order, contact your distributor. |
Key Features | • Single SFP+ Connector • MicroLP Form Factor • PCI Express 2.0 (up to 5GT/s) • Intel?QuickData Technology • VMDq, Next-Generation VMDq, and • PC-SIG SR-IOV for Virtualized Environments • Load Balancing on Multiple CPUs • iSCSI Remote Boot Support • Fibre Channel over Ethernet (FCoE) Support • Support for most Network Operating Systems (NOSs) • Support both DAC Twin Axial and LC Fiber-Optic Cables • RoHS compliant 6/6 |
Compliance | RoHS Compliant 6/6, Pb Free |
Compatibility Matrices | Servers: Supermicro MicroCloud and Twin Server Systems with microLP expansion slot See MicroLP Compatibility Matrix Cables & Transceivers: Networking Cables & Transceivers |
Specification | • General - Intel® 82599EN 10GbE controller - Compact size microLP form factor - Single SFP+ port and dual USB 2.0 ports - PCI-E x8 2.0 (5GT/s) - Load balancing on multiple CPUs - iSCSI remote boot support - Fibre Channel over Ethernet (FCoE) Support - Intel® PROSet Utility for Windows® Device Manager • I/O Features - Intel QuickData Technology: DMA engine that enhances - Data acceleration and lowers CPU usage - Direct Cache Access (DCA) to avoid cache misses - MSI-X support to minimize the overhead of interrupts - Allowing load-balancing between multiple cores/CPUs - Tx/Rx IP, SCTP, TCP and UDP checksum offloading Capabilities (IPv4, IPv6) - Receive and Transmit Side Scaling for Windows - environments and Scalable I/O for Linux environments • Virtualization Features - Supports virtualization features such as VMDq, - Next-generation VMDq (64 queues per port) and - PC-SIG SR-IOV implementation - IPv6 Offloading - Advanced Packet Filtering - VLAN support to allow creation of multiple VLAN segment |
• OS Support - Windows® 7, 2003, 2008, 2008 R2, Vista - RedHat EL, SuSe SLES - FreeBSD - VMWare • Cables Support - SFP+ direct attached twin axial cables, up to 7 meters - LC-LC fiber-optic cables (optional SFP+ transceiver is required) • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W x D) - Card PCB dimensions (without end brackets): 12.8cm (5.04in) x 5.0cm (1.97in) x 2.35cm (0.93in) |
|
Supported Platforms | Servers: Supermicro 12-node MicroCloud systems with microLP expansion slot |
Qty | 1 |
