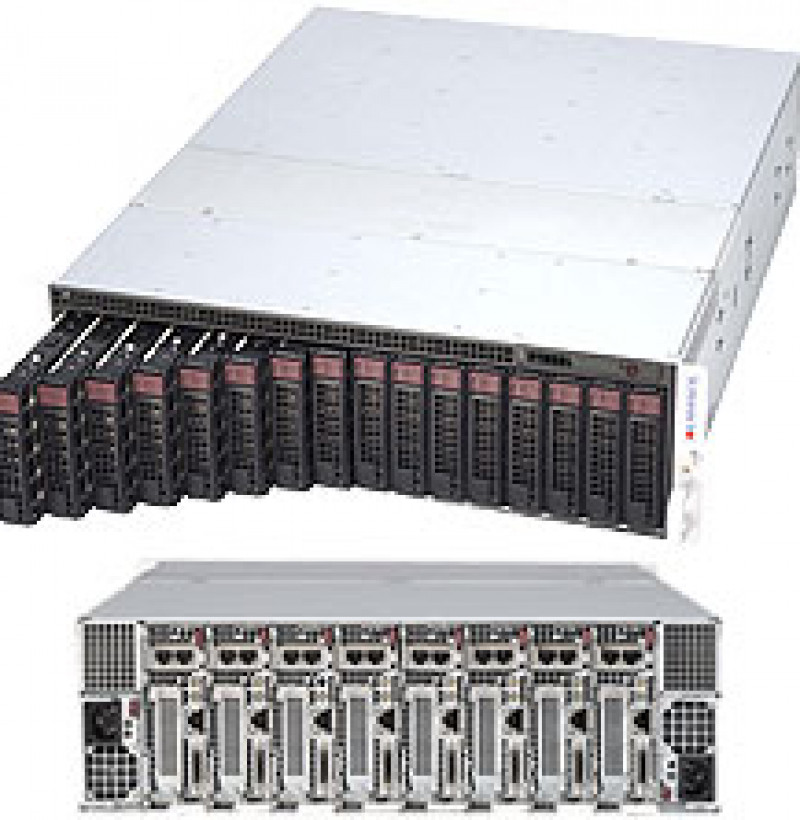

Form Factor: 3U Rackmount
Processor: Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd/3rd Gen. Core i3 & Intel® Pentium® family processors***
Socket H2 (LGA 1155)
Memory: Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Hard Drive: 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended
Raid Controller: 1x SATA DOM
2x SATA 3.0 (6Gbps) w/ RAID 0, 1
Ethernet: Intel® 82580DB GbE controller
Remote Management: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Power Supply: 1620W high-efficiency redundant power supply
Platinum Certified
3U Rackmount
Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd/3rd Gen. Core i3 & Intel® Pentium® family processors***
Socket H2 (LGA 1155)
Intel® C204 PCH chipset*
4x 240-pin DDR3 DIMM sockets
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs
2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended
1x SATA DOM
2x SATA3 (6Gbps) w/ RAID 0 and 1
Intel® 82580DB GbE controller
iSCSI boot and PXE support
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Matrox G200eW 16MB DDR2
1 (x8) PCI-E 3.0*** low-profile slot
MicroLP Adapter Matrix (Networking options)
AOC Compatibility Matrix
1620W high-efficiency redundant power supply
Platinum Certified
