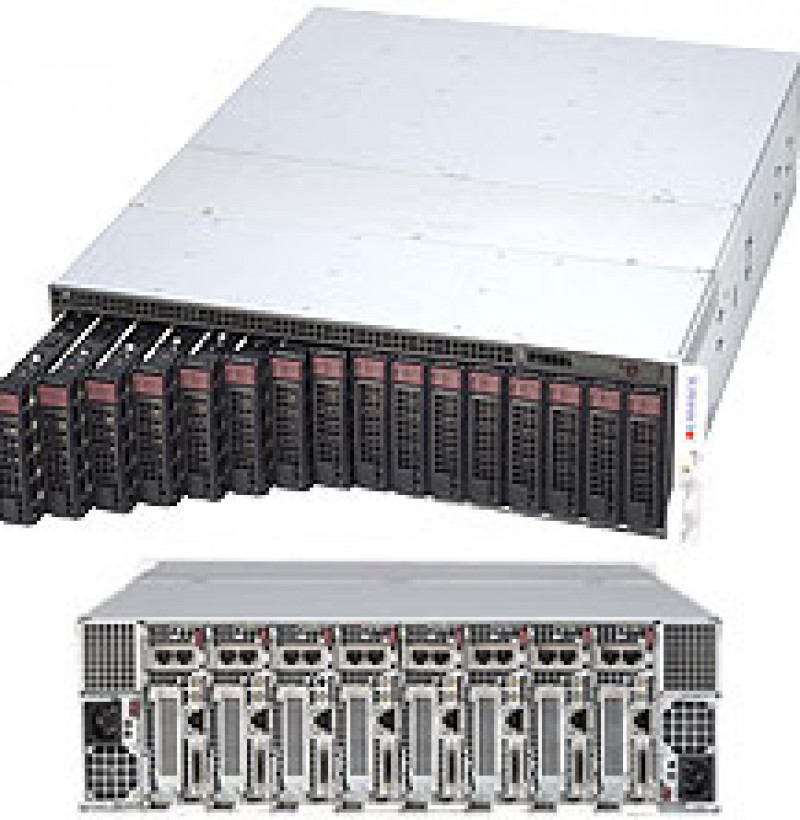

Form Factor: 3U Rackmount
Processor: Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors
Up to 84W
Socket H3 (LGA 1150)
Memory: Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Hard Drive: 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended (per node )
Raid Controller: 1x SATA DOM
2x SATA3 (6Gbps) w/ RAID 0 and 1
Ethernet: Intel® i350 GbE controller
Remote Management: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
ASPEED AST2400 BMC
Power Supply: 1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
3U Rackmount
Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ i3, Pentium, Celeron processors
Up to 84W
Socket H3 (LGA 1150)
Intel® C224 PCH chipset
4x 240-pin DDR3 DIMM slots
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs
2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended
1x SATA DOM
2x SATA3 (6Gbps) w/ RAID 0 and 1
Intel® i350 GbE controller
Dual RJ-45 connectors
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Intel® I/O Acceleration Technology (I/O AT)
MicroLP Adapter Matrix (Networking options)
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
ASPEED AST2400 BMC
ASPEED AST2400 Graphics (BMC with Graphic controller)
1x PCI-E 3.0 x8 Low-profile slot
1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
