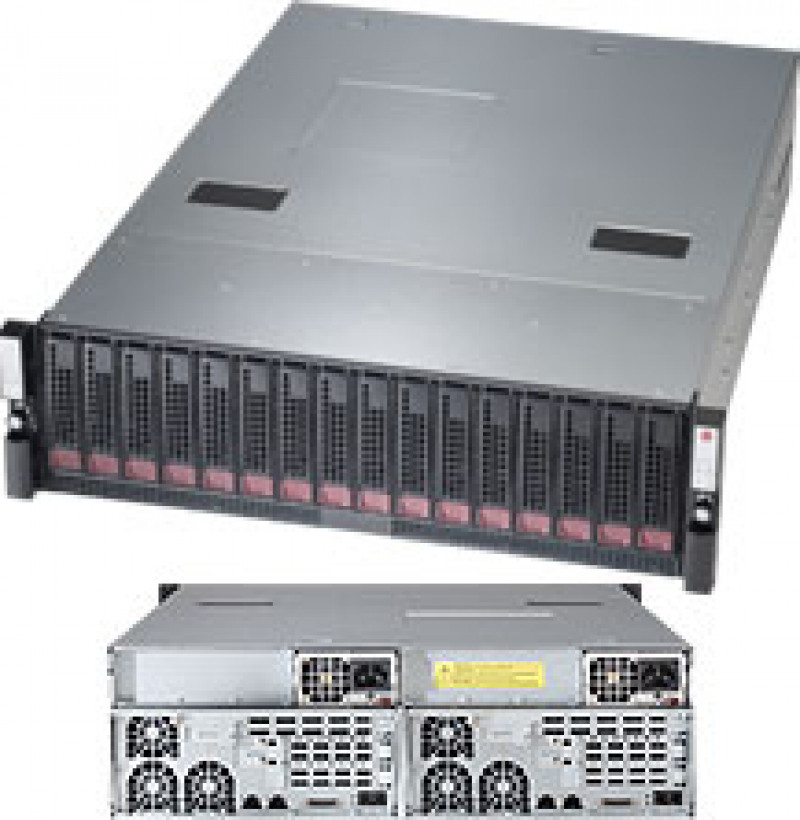

Form Factor: 3U Rackmount
Processor: Dual Socket B2 (LGA 1356)
Intel® Xeon® processor E5-2400 v2
Up to 95W TDP
Memory: Supports up to 192GB DDR3 ECC Registered memory
Hard Drive: 16x Hot-swap 3.5" Drive Bays
SAS or enterprise SATA HDD only recommended
SATA drives require LSI interposer
Raid Controller: N/A
Ethernet: Intel® i350 Dual-Port Gigabit Ethernet Controller
Remote Management: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Power Supply: 920W Redundant High-Efficiency Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
Platinum Certified
3U Rackmount
Dual Socket B2 (LGA 1356)
Intel® Xeon® processor E5-2400 v2
Up to 95W TDP
Intel® C602J chipset
6x 240-pin DIMM slots
Supports up to 192GB DDR3 ECC Registered memory
Memory Mirroring supported
1866/1600/1333/1066/800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details)
16x Hot-swap 3.5" Drive Bays
SAS or enterprise SATA HDD only recommended
SATA drives require LSI interposer
Intel® i350 Dual-Port Gigabit Ethernet Controller
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Matrox G200eW 16 MB DDR2
3x PCI-E 3.0 x8 slots (on riser) per node
920W Redundant High-Efficiency Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
Platinum Certified
