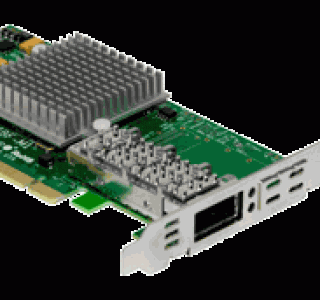

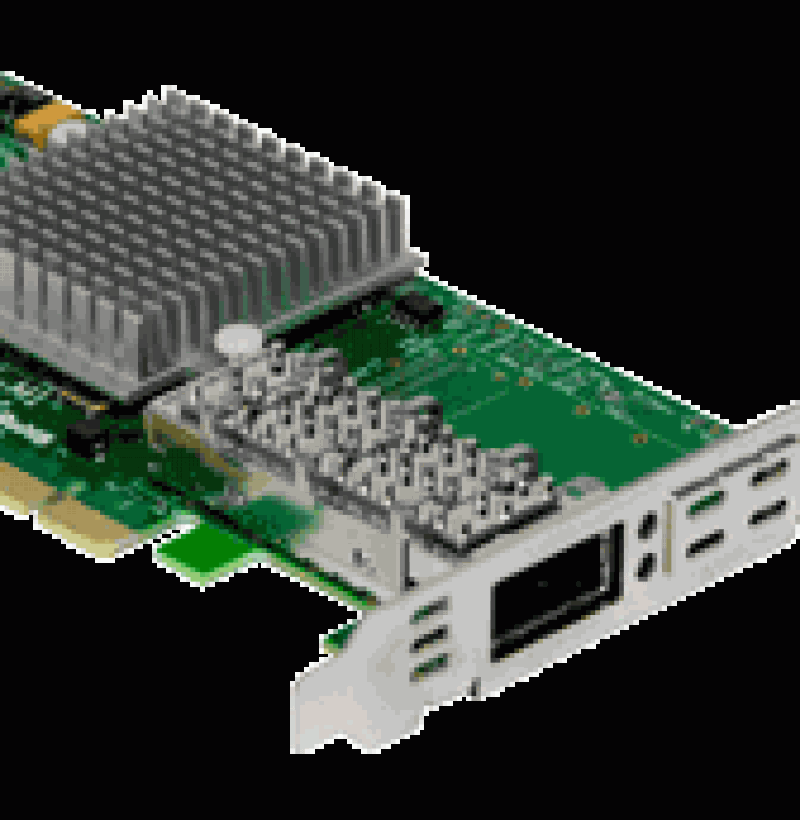

The AOC-UIBF-m1 is the most compact, yet powerful, InfiniBand adapter in the market.
Part Number | AOC-UIBF-m1 |
Description | The AOC-UIBF-m1 is the most compact, yet powerful, InfiniBand adapter in the market. |
Add-on-Card | Compact and Powerful InfiniBand FDR Adapter The AOC-UIBF-m1 is the most compact, yet powerful, InfiniBand adapter in the market. Based on Mellanox® ConnectX-3 FDR controller with Virtual Protocol Interconnect (VPI), it provides the highest performing and most flexible interconnect solution for servers used in Enterprise Data Centers and High-Performance Computing. The AOC-UIBF-m1 simplifies the system development by serving both InfiniBand and Ethernet fabrics in one hardware design. The AOC-UIBF-m1 is designed to fit Supermicro UIO server systems. Please note that this product is only available as an integrated solution with Supermicro server systems. |
Compliance | RoHS Compliant 6/6, Pb Free |
Compatibility Matrices | Cables & Transceivers: Networking Cables & Transceivers WIO/UIO Servers and Motherboards: AOC Compatibility Matrix |
Specification | • General - Mellanox® ConnectX-3 FDR controller - Compact size UIO form factor - Single QSFP port - PCI-E 3.0 x8 (8GT/s) interface • Connectivity - Interoperable with InfiniBand or 10/40GbE switches - Passive copper cable with ESD protection - Powered connectors for optical and active cable support • InfiniBand - IBTA Specification 1.2.1 compliant - Hardware-based congestion control - 16 million I/O channels - 256 to 4Kbyte MTU, 1Gbyte messages • Enhanced InfiniBand - Hardware-based reliable transport - Collective operations offloads - GPU communication acceleration - Hardware-based reliable multicast - Extended Reliable Connected transport - Enhanced Atomic operations |
• Ethernet - IEEE Std 802.3ae 10 Gigabit Ethernet - IEEE Std 802.3ba 40 Gigabit Ethernet - IEEE Std 802.3ad Link Aggregation and Failover - IEEE Std 802.3az Energy Efficient Ethernet - IEEE Std 802.1Q, .1p VLAN tags and priority - IEEE Std 802.1Qau Congestion Notification - IEEE P802.1Qaz D0.2 ETS - IEEE P802.1Qbb D1.0 Priority-based Flow Control - Jumbo frame support (9.6KB) • Hardware-based I/O Virtualization - Single Root IOV - Address translation and protection - Dedicated adapter resources - Multiple queues per virtual machine - Enhanced QoS for vNICs - VMware NetQueue support • Additional CPU Offloads - RDMA over Converged Ethernet - TCP/UDP/IP stateless offload - Intelligent interrupt coalescence • Flexboot™ Technology - Remote boot over InfiniBand - Remote boot over Ethernet - Remote boot over iSCSI |
|
• Protocol Support - Open MPI, OSU MVAPICH, Intel MPI, MS - MPI, Platform MPI - TCP/UDP, EoIB, IPoIB, SDP, RDS - SRP, iSER, NFS RDMA - uDAPL • Operating Systems/Distributions - Novell SLES, Red Hat Enterprise Linux (RHEL), and other Linux distributions - Microsoft Windows Server 2008/CCS 2003, HPC Server 2008 - OpenFabrics Enterprise Distribution (OFED) - OpenFabrics Windows Distribution (WinOF) - VMware ESX Server 3.5, vSphere 4.0/4.1 • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) • Physical Dimensions (L x W) - Card PCB dimensions (without end brackets): 14.29cm (5.63") x 6.90cm (2.73") - Height of end brackets: Standard - 12cm (4.73"), low-profile - 7.94cm (3.13") |
|
Qty | 1 |
