UIO 2-port 10GbE Controller


Part Number AOC-UTG-i2
Description UIO 2-port 10GbE Controller

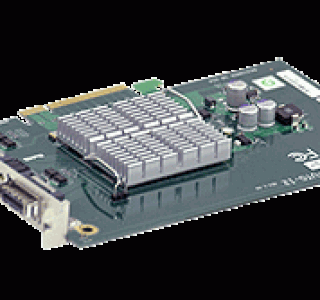

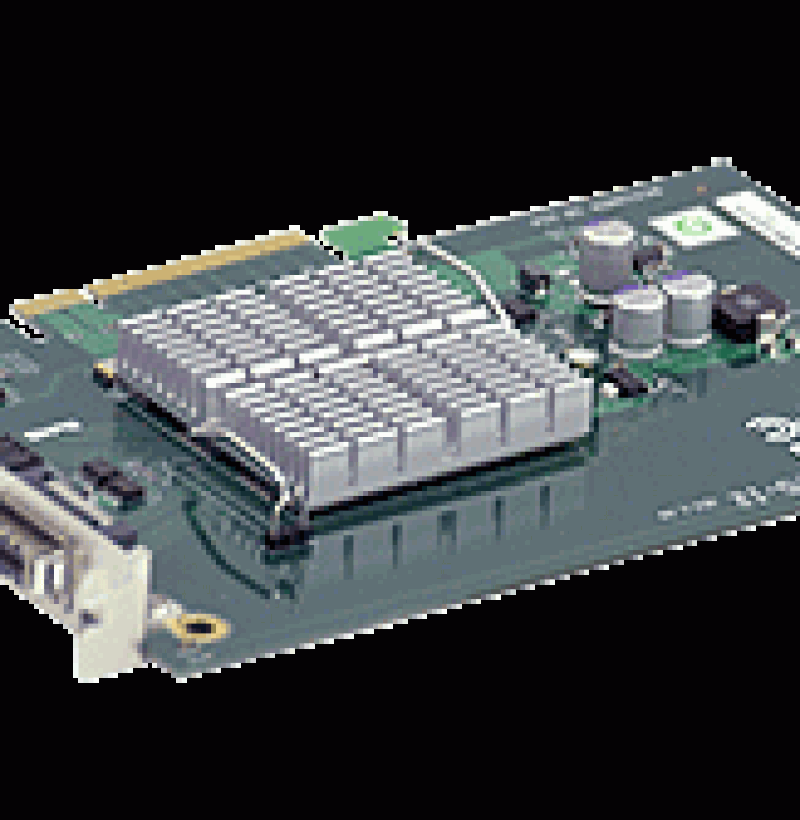

Add-on Card Supermicro Universal I/O 2-port 10-Gigabit Ethernet LAN card
AOC-UTG-i2 is a high-performance, dual-port 10Gb network controller optimized for multicore Intel® Xeon® processor-based servers and virtualized environments. This adapter addresses the networking bottlenecks associated with server consolidation and is ideal for virtualization and demanding enterprise applications such as storage and high-performance computing. This excellent energy-efficient UIO card is also an ideal choice to unify storage while maximizing performance with low TCO.
To order, contact your distributor. This product is only available through Supermicro.
Key Features High-performing, PCI-E 10Gb Ethernet connection ideally suited for demanding enterprise applications
Dual-port, industry-leading, energy-efficient design
Introduces multiple product innovation optimized for virtualization and ideal for server consolidation
High-volume stable architecture that includes broad operating system support
Optimized for Supermicro UIO servers and motherboards
Dual-port Intel® 82598EB with two CX4 connectors
PCI-E x8 Full-height half-length UIO form factor *
Intel® I/O Acceleration Technology (I/OAT) for improved CPU utilization
Low-latency interrupts
16 Virtual Machine Device queues (VMDq) for virtualized environments
Direct Cache Access (DCA) to eliminate cache misses and reduce CPU load
Tx/Rx, IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities to increase throughput and lower processor utilization
Preboot eXecution Environment (PXE) support
Jumbo Frames support up to 9.5KB packets
Intel® PROSet Utility for Windows® Device Manager to support network teaming
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters
Energy-efficient design (maximum 6.5W)
RoHS Compliant 6/6
Support CX4 Copper cable up to 15m
Operating temperature 0-55°C
Storage humidity: 90% non-condensing relative humidity at 35°C
OS Support: Windows®, Linux, VMWare
Compliance RoHS Compliant 6/6, Pb Free
Compatibility Matrices Cables & Transceivers: Networking Cables & Transceivers
WIO/UIO Servers and Motherboards: AOC Compatibility Matrix
Compatible Cable Ethernet 10GBase-CX4 Copper Cable (Not Included)
Qty 1
