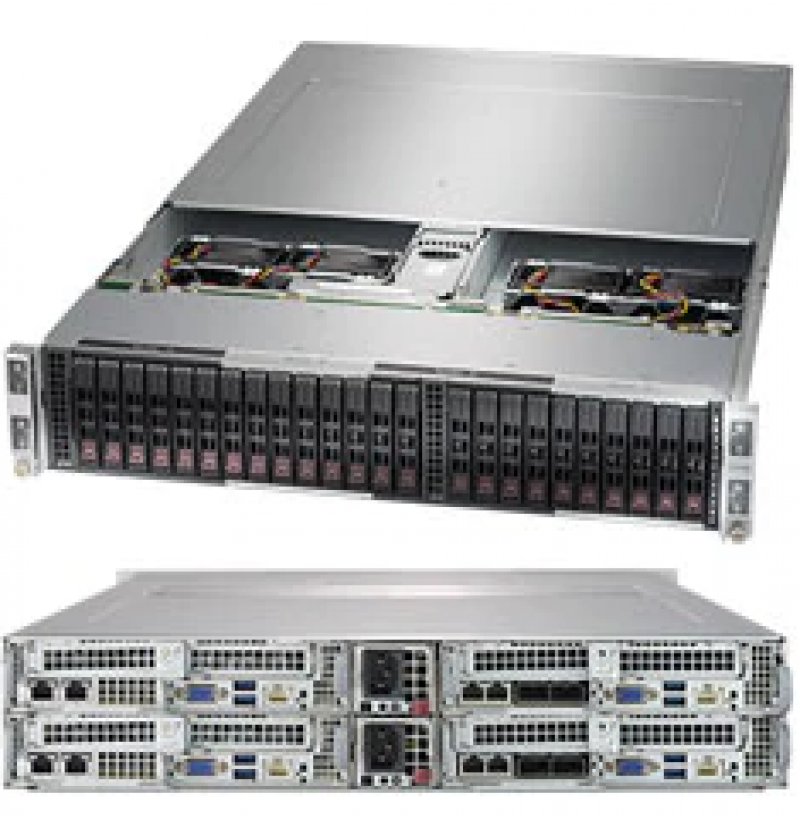

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
At least one network card must be bundled
6 Hot-swap 2.5" SATA3 drive bays per node
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) High-efficiency Power Supplies
