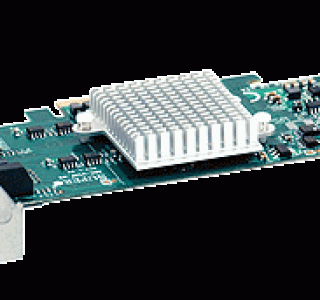

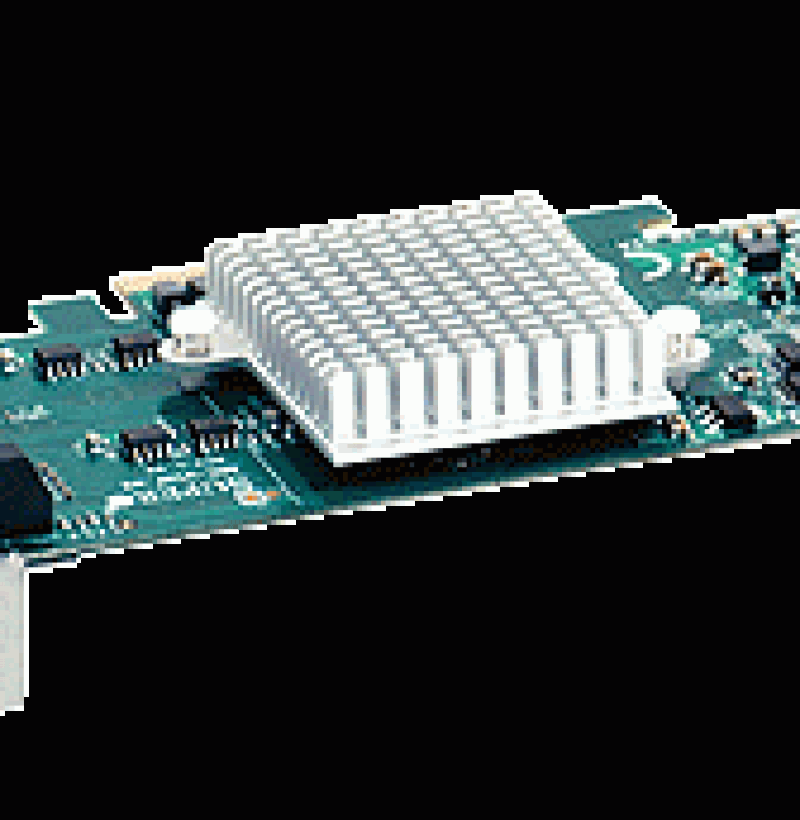

OC-UINF-M2 InfiniBand card with Virtual Protocol Interconnect Interconnect™ (VPI) delivers low-latency and high-bandwidth
Part Number | AOC-UINF-M2 |
Description | AOC-UINF-M2 InfiniBand card with Virtual Protocol Interconnect Interconnect™ (VPI) delivers low-latency and high-bandwidth |
Add-on-Card | AOC-UINF-M2 InfiniBand card with Virtual Protocol Interconnect Interconnect™ (VPI) delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-UINF-M2 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. To order, contact your distributor. This product is only available through Supermicro. |
Compliance | RoHS Compliant 6/6, Pb Free |
Compatibility Matrices | Cables & Transceivers: Networking Cables & Transceivers WIO/UIO Servers and Motherboards: AOC Compatibility Matrix |
Specification | InfiniBand: - Mellanox ConnectX IB DDR MT25408A0-FCC-GI - Dual 4X InfiniBand ports - 20Gb/s per port - RDMA, Send/Receive semantics - Hardware-based congestion control - Atomic operations Interface: - PCI Express 2.0 x8 - UIO form factor Connectivity: - Interoperable with InfiniBand switches - 10m+ (20Gb/s) of copper cable - External optical media adapter and active cable support Hardware-based I/O Virtualization: - Single Root IOV - Address translation and protection - Multiple queues per virtual machine - VMware NetQueue support - Complimentary to Intel® and AMD I/OMMU - PCISIG IOV compliant |
CPU Offloads: - TCP/UDP/IP stateless offload - Intelligent interrupt coalescence - Full support for Intel® I/OAT - Microsoft® RSS and NetDMA Compliant Storage Support: - T10-compliant Data Integrity Field support - Fibre Channel over InfiniBand or Ethernet Operating Systems/Distributions: - Novell SLES, RedHat, Fedora and others - Microsoft® Windows Server 2003/2008/CCS 2003 - OpenFabrics Enterprise Distribution (OFED) - OpenFabrics Windows Distribution (WinOF) - VMWare ESX Server 3.5, Citrix XenServer 4.1 Operating Conditions: - Operating temperature: 0 to 55°C - Requires 3.3V, 12V power supplies |
|
Compatible Cable | InfiniBand CX4 Copper 20Gb/s Cable (Not Included) |
Qty | 1 |
