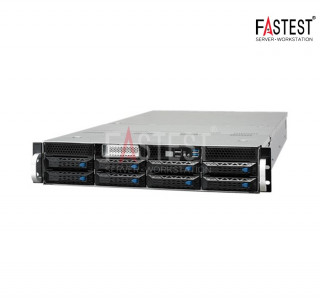

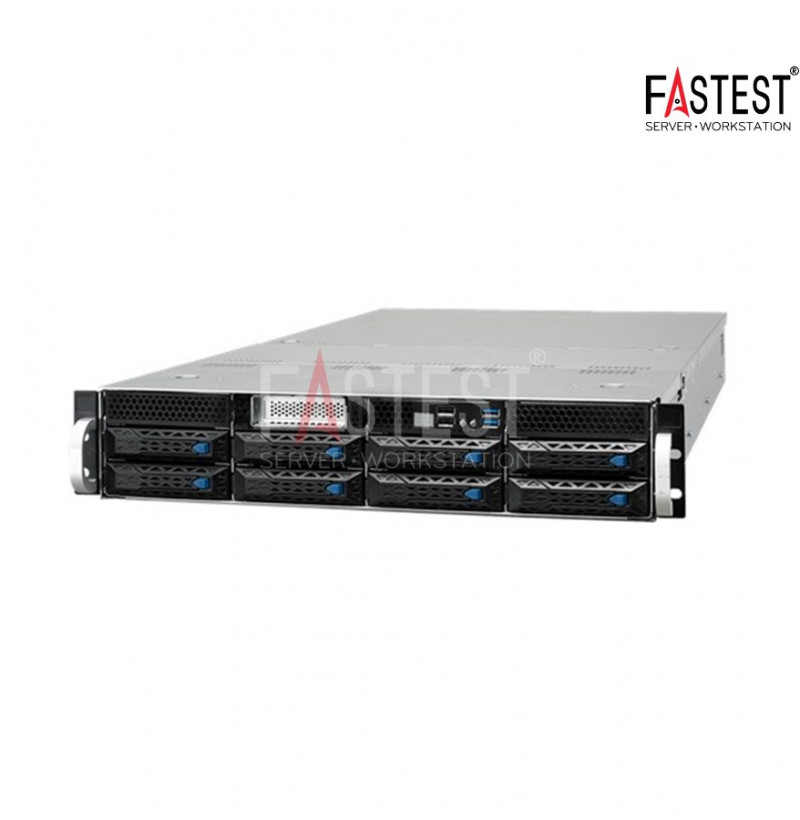

ASUS ESC4000 G4 - High performance 2U accelerator server with 16 DIMMs and 8 hot-swap HDD bays

ASUS ESC4000 G4 - High performance 2U accelerator server with 16 DIMMs and 8 hot-swap HDD bays

Giá bán (chưa VAT): 0

Thương hiệu: ASUS

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

Specifications

  • Processor / System Bus
    2 x Socket P (LGA 3647)
    1st and 2nd Gen Xeon® Scalable Processor Family (150W)
    *Refer to support page for more information
  • Core Logic
    Intel® Lewisburg PCH C621
  • Memory
    Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
    Capacity : Maximum up to 2048GB LRDIMM
    Memory Type :
    DDR4 2933/2666/2400 /2133 RDIMM
    DDR4 2933/2666/2400 /2133 LRDIMM
    DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
    DDR4 Intel® Optane™ DC Persistent Memory
    Memory Size :
    64GB, 32GB, 16GB RDIMM
    128GB, 64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information
  • Expansion Slots
    Total: 8 + 3
    Full-length/Full-height
    8 * PCIe 3.0 x16 (4 at x16 Link or 8 at x8 Link)
    (2 from CPU1 and 2 from CPU2 or 4 from CPU1 and 4 from CPU2)

    Half-length/Low-profile
    Rear:
    1 * PCIe 3.0 x24 (support with riser card)
    (1 * PCIe x16 (x16 Gen3 Link) from CPU1 and 1 * PCIe x8 (x8 Gen3 Link) from CPU2)
    Front:
    1 * PCIe x8 (internal HBA/RAID card)
    (from CPU2, Bandwidth is shared between PCIe x8 and 2 x NVMe drives)
  • Storage
    SATA Controller :
    Intel® C621
    8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)
    or
    6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1 )
    SAS Controller :
    ASUS PIKE II 3008 8-port SAS HBA card
    ASUS PIKE II 3108 8-port SAS HW RAID card
    12G SAS Support
  • Drive Bays
    8 x Hot-swap 3.5" HDD Bays
  • Networking
    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • Front I/O Ports
    1 x 80 port
    2 x USB 3.0 ports + 2 x USB 2.0 ports
  • Rear I/O Ports
    2 x USB 3.0 port
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    2 x RJ-45 GbE LAN ports
  • Switch/LED
    Rear Switch/LED:
    1 x Power switch/LED
    1 x Location LED
    1 x Message LED
    1 x HDD Access LED

    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    2 x LAN LED
    1 x Message LED
    1 x HDD LED
  • OS Support
    *
    Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
  • Management Solution
    ASUS Control Center Enterprise (Optional)
    On-Board ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance
    BSMI, CE, RCM, FCC(Class A)
  • Dimensions
    800mm x 440mm x 88mm (2U)
    31.50" x 17.22" x 3.46"
  • Form Factor
    2U
  • Power Supply
    1+1 Redundant 1600W 80 PLUS Platinum Power Supply
    100-127Vac,12.9A,1000W
    200-240Vac,9.5A, 1600W

    1+1 Redundant 2200W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac,12.9A/9.5A (x2), 47-63Hz
    *2200W Power supply is only available for selected countries.
  • Environment
    Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
