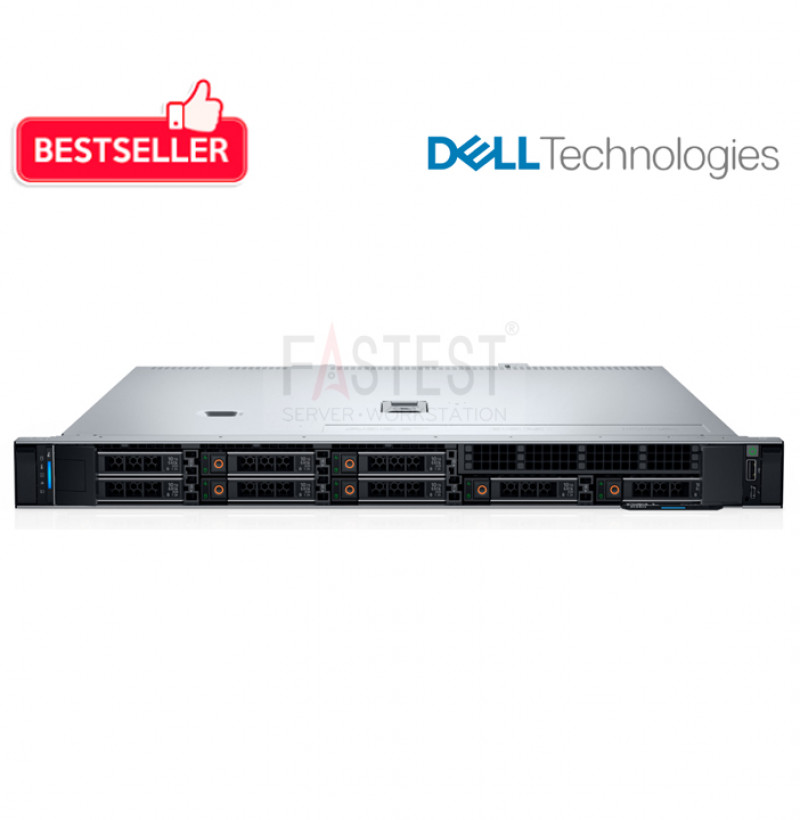

Dell PowerEdge R360 2.5 Rack 1U (E-2434)

Feature

Technical Specifications

Processor

One Intel Xeon E-2400 series processor with up to 8 cores or One Intel Pentium G7400/G7400T processor with 2 cores

Memory

• 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
• Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs, USB
• External HBAs (non-RAID): HBA355e Adpt
• Software Controller: S160

Drive Bays

Front bays:

• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
• Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB

Power Supplies

• 600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant
• 700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant

Cooling Options

Air cooling

Fans

• Up to 4 fans

Dimensions

• Height – 42.8 mm (1.68 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 585.3 mm (23.04 inches) without bezel
• Depth — 598.9 mm (23.57 inches) with bezel

Form Factor

1U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual

Bezel

Security bezel

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

GPU Options

1 x 60 W single-width GPU

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0

Rear Ports

• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.2 Gen1
• 1 x VGA
• 1 x Serial

Internal Ports

• 1 x USB 3.2 Gen1

PCIe

Up to two PCIe Gen4 slots on the Gen4 Riser

• Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
• Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
• One dedicated PCIe x8 slot on the system board for internal PERC
