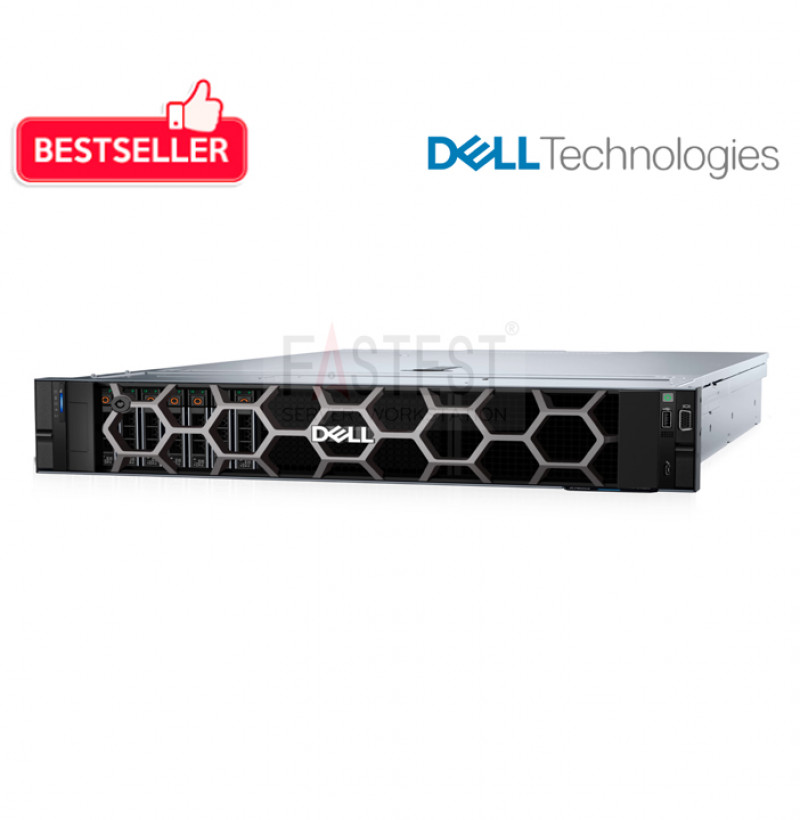

Dell PowerEdge R760XA 2.5 Rack 2U (Silver 4410Y)

Feature

Technical Specifications

Processor

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist

Technology

Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist

Technology

Memory

• 32 DDR5 DIMM slot, supports RDIMM 8 TB max
• Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
• Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB
• External HBA (non-RAID): HBA355e, H965e
• Software RAID: S160

Drive Bays

Front bays:

• Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
• Up to 6 x 2.5-inch NVMe, max 92.16 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB

Power Supplies

• 3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant
• 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant

Cooling Options

• Air cooling
• Optional Direct Liquid Cooling (DLC)

Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans

• Standard (STD) fan
• Up to six hot plug fans

Dimensions

• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 946.73 mm (37.27 inches) - without bezel

932.89 mm (36.73 inches) - with bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish

• iDRAC Service Module
• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)

• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1GbE LOM card (optional)

Network Options

1 x OCP card 3.0 (optional)

NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options

Up to 4 x 350 W DW PCIe x16 GPU cards

Up to 12 x 75 W SW PCIe x8 GPU cards

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

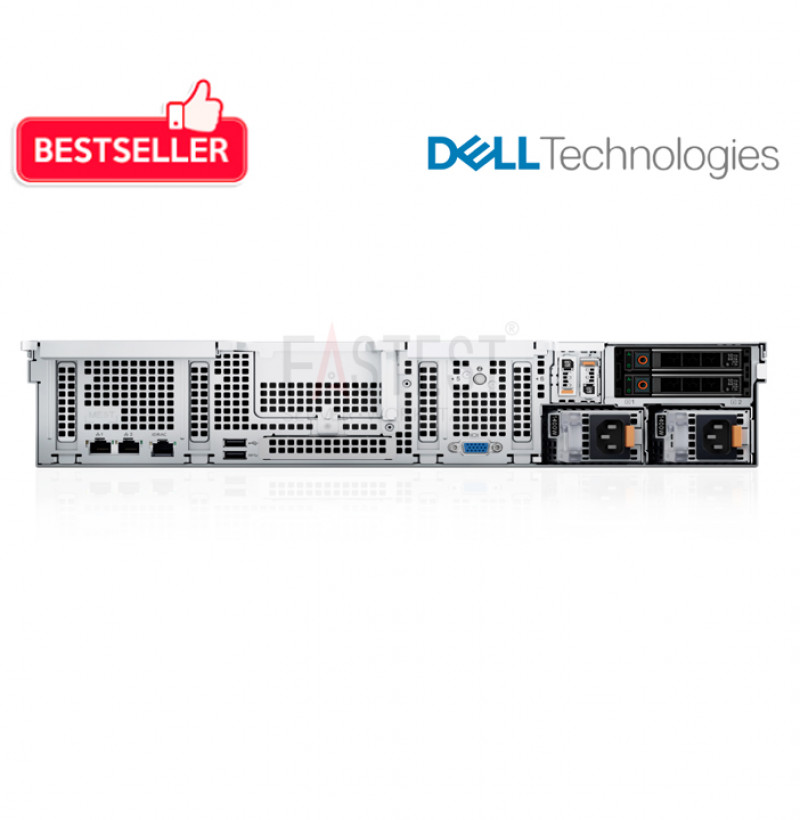

Rear Ports

• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports

• 1 x USB 3.0 (optional)

PCIe

Up to twelve PCIe slots (x16 connector)

• 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
• 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions..
