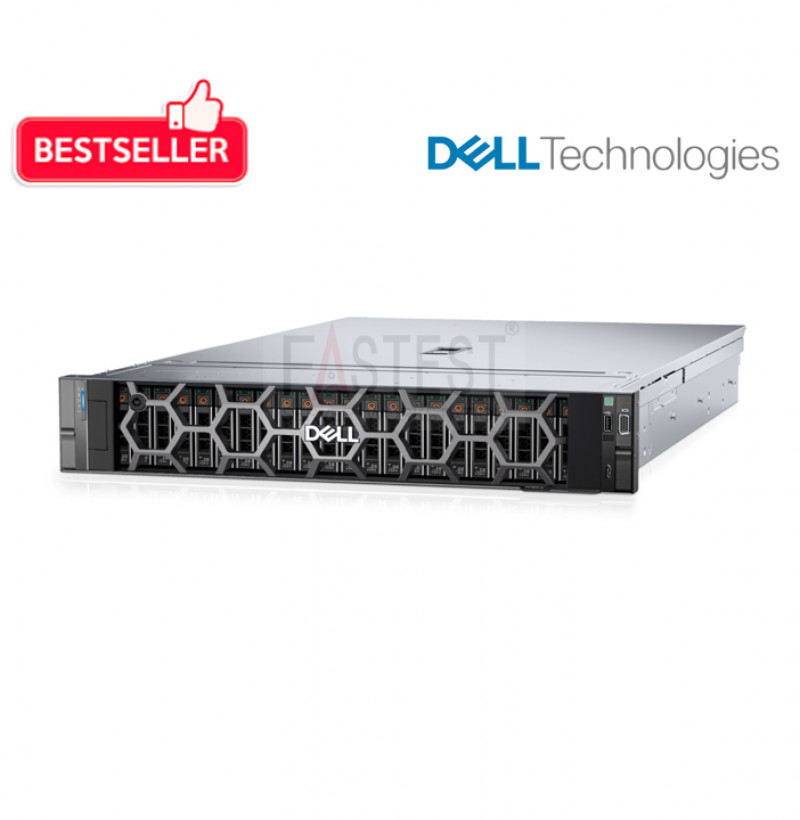

PowerEdge R760 2.5 Rack 2U (Gold 5416S)

Feature

Technical Specifications

Processor

• Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores per processor and with optional Intel® QuickAssist Technology
• Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor

Memory

• 32 DDR5 DIMM slots, supports RDIMM 8 TB max,
• Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable or Intel Xeon Max processors
• Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors
• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• External Controller: PERC H965e
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
• Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB

Power Supplies

• 3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 2800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant
• 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W -(48—60) VDC, hot swap redundant
• 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant

Cooling Options

• Air cooling
• Optional Direct Liquid Cooling (DLC)

Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans

• Standard (STD) fans/High performance Silver (HPR Silver) fans/ High performance Gold (HPR Gold) fans
• Up to 6 hot plug fans

Dimensions

• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 772.13 mm (30.39 inches) with bezel

758.29 mm (29.85 inches) without bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM card (optional)

Feature

Technical Specifications

Network options

• 1 x OCP card 3.0 (optional)

Note: The system allows either LOM card or an OCP card or both to be installed in the system.

• 1 x Management Interface Card (MIC) to support Dell Data Processing Unit (DPU) card (optional) Note: The system allows either LOM card or MIC card to be installed in the system.

GPU Options

Up to 2 x 350 W DW and 6 x 75 W SW

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

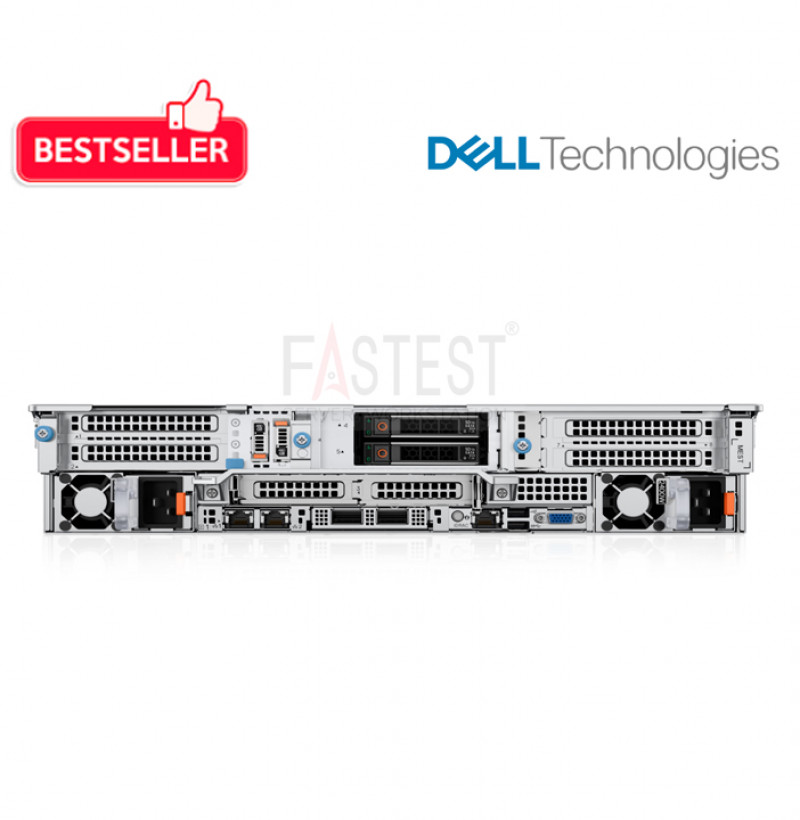

Rear Ports

• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports

• 1 x USB 3.0 (optional)

PCIe

Up to eight PCIe slots:

• Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
• Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
• Slot 3: 1 x16 Gen4 Low profile, Half length
• Slot 4: 1 x8 Gen4 Full height, Half length
• Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
• Slot 6: 1 x16 Gen4 Low profile, Half length
• Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
• Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
• Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions.
