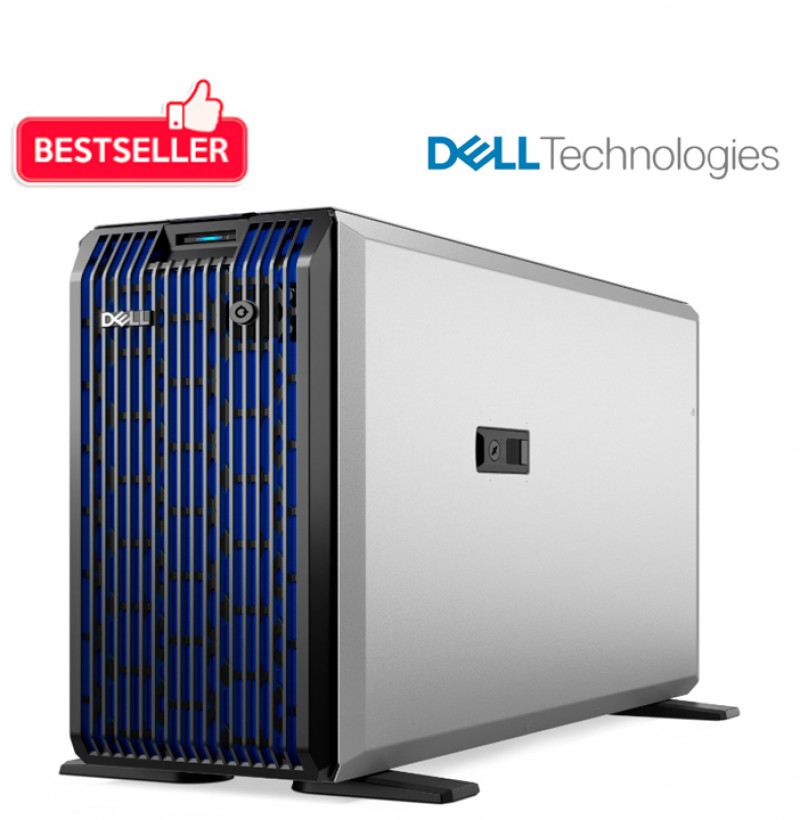

PowerEdge T360 Tower Server (Xeon® E-2434)

Feature

Technical Specifications

Processor

One Intel Xeon E-2400 series processor with up to eight cores or one Intel Pentium G7400/ G7400T processor with up to two cores

Memory

• 4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s
• Supports unregistered ECC DDR5 DIMMs only

Storage controllers

• Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB
• External HBA (non-RAID): HBA355e Adpt
• Software RAID: S160

Drive Bays

Front bays:

• Up to 4 x 3.5-inch SATA HDD/SSD, max 64 TB
• Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB
• Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB

Power Supplies

• 450 W Platinum 100-240 V AC, cabled
• 600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant
• 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant

Cooling Options

Air cooling

Fans

• One Standard (STD) fan and one optional High performance (HPR) fan

• Up to two cabled fans

Dimensions

• Height – 382.5 mm (15.06 inches)
• Width – 175 mm (6.89 inches)
• Depth – 579.72 mm (22.82 inches) with bezel

Form Factor

4.5U tower server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual

Bezel

Security bezel

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

• CloudIQ for PowerEdge plugin
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM

GPU Options

1 x 60 W SW GPU

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 3.2 Gen1

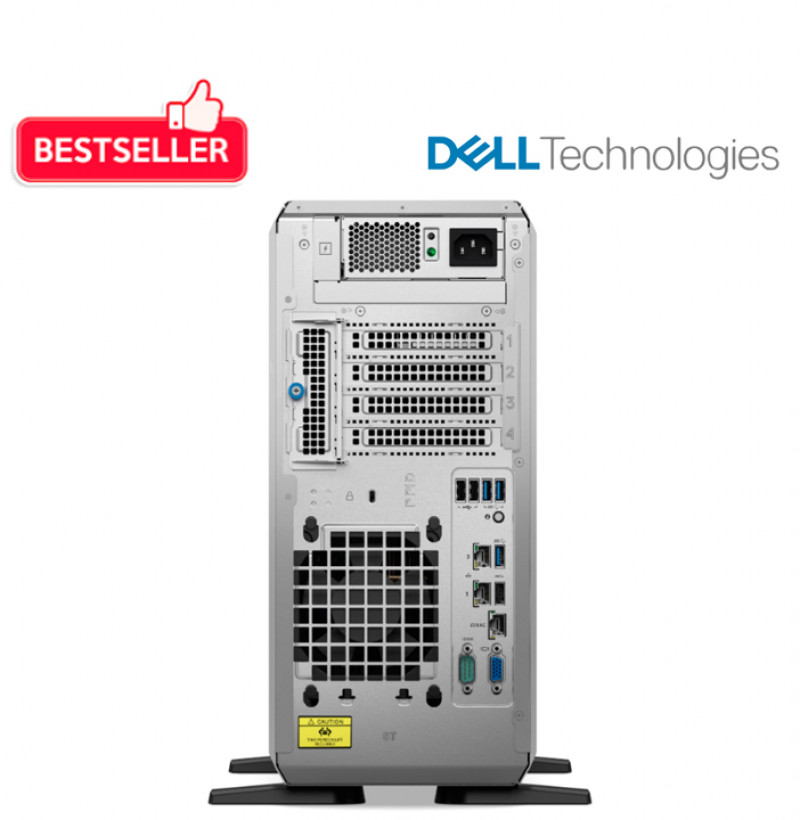

Rear Ports

• 3 x USB 2.0
• 3 x USB 3.2 Gen1
• 1 x Dedicated iDRAC Ethernet port
• 1 x Serial
• 1 x VGA
• 2 x Ethernet ports

Internal Ports

• 1 x USB 3.2 Gen1

PCIe

Up to four PCIe slots

• Slot 1: x8 Gen4 Full height, half length
• Slot 2: x16 Gen5 Full height, half length
• Slot 3: x1 Gen4 Full height, half length
• Slot 4: x8 Gen4 Full height, half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

For specifications and interoperability details, see Dell.com/OSsupport.

OEM-ready version available

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions
