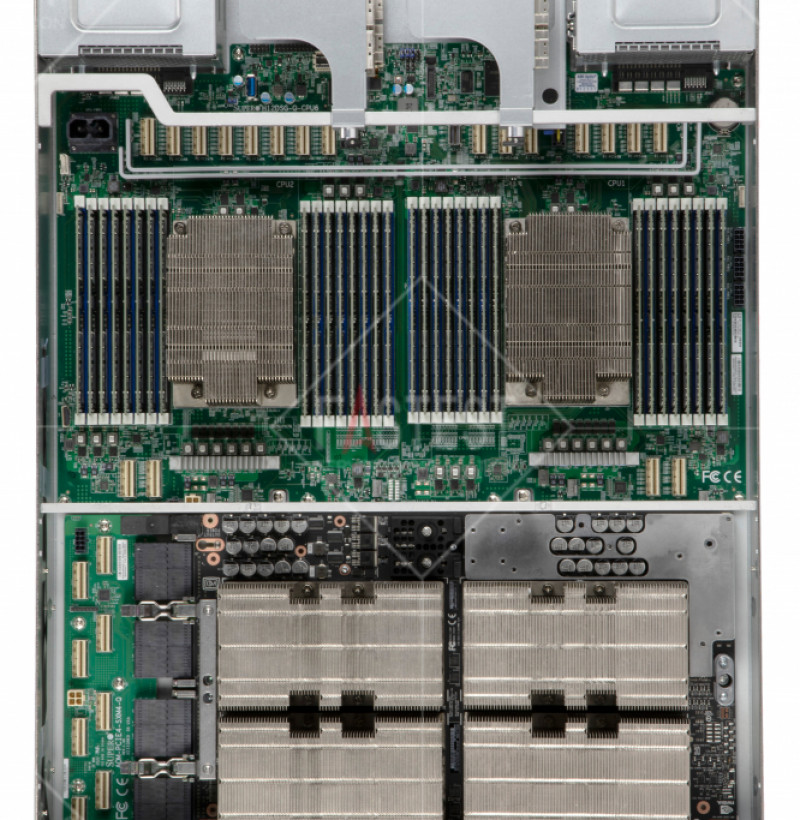

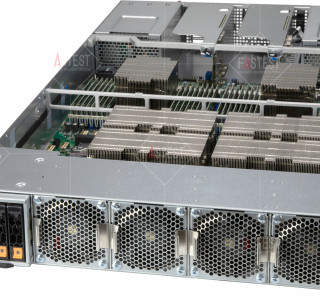

Supermicro A+ Server 2124GQ-NART

Supermicro A+ Server 2124GQ-NART

Giá bán (chưa VAT): 0

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

Coming Soon

 Key Applications

- AI Compute / Model Training / Deep Learning
- High-performance Computing (HPC)



Key Features

1.High Density 2U System with NVIDIA® HGX™ A100 4-GPU

2.Supports 4 A100 40GB SXM4 GPUs

3.Direct connect PCI-E Gen4 Platform
with NVIDIA® NVLink™

4.On board BMC supports integrated
IPMI 2.0 + KVM with dedicated 10G LAN

5.Dual AMD EPYC™ 7002 Series Processors

6.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

7.4 PCI-E Gen 4 x16 (LP), 1 PCI-E Gen 4 x8 (LP)

8.4 Hot-swap 2.5" drive bays
(SAS/SATA/NVMe Hybrid)

9.2x 2200W Redundant Power Supplies, Titanium Level + 4 Hot-swap heavy duty fans

AMD EPYC

SPECS

Product SKUs

AS -2124GQ-NART
  • A+ Server 2124GQ-NART (Black)

Motherboard


Super H12DSG-Q-CPU6

Processor/Cache

CPU
  • Dual AMD EPYC™ 7002 Series Processors
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 128 Cores (64 per CPU)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU Support
  • Supports 4x A100 40GB SXM4 GPUs with NVlink GPU interconnect and PCIe Gen4 to host CPUs

System Memory

Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC DDR4-3200MH SDRAM
Memory Type
  • 3200MHz ECC DDR4 SDRAM

On-Board Devices

Chipset
  • System on Chip (SoC)
Network
  • Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics & System Management
  • ASPEED AST2600 BMC

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GbE-aggregate host LAN ports
  • 1 RJ45 1GbE Dedicated IPMI management port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector (rear)
Others
  • 1 COM port (header)
  • 1 TPM 2.0 (header)

System BIOS

BIOS Type
  • AMI 256Mb SPI Flash ROM

Management

Software

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 2U Rackmountable
Model
  • CSE-228GTS-R000NP

Dimensions

Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 32.4" (823mm)
Available Colors
  • Black

Drive Bays / Storage

Hot-swap
  • 4 Hot-swap 2.5" drive bays (SATA/NVMe Hybrid or SAS with optional HBA)

Expansion Slots

PCI-Express
  • 4 PCI-E Gen 4 x16 (LP) slots
  • 1 PCI-E Gen 4 x8 (LP) slot

System Cooling

Fans
  • 4 Hot-swap heavy duty fans

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 2200W: 220 – 240Vac
  • Higher power version coming soon
Dimension
(W x H x L)
  • 107 x 82 x 204 mm
Input
  • 100-127Vac / 12-9A / 50-60Hz
  • 220-240Vac / 11-10A / 50-60Hz
Output Type
  • Gold Finger Connector
Certification Titanium Level96%Titanium Level

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
