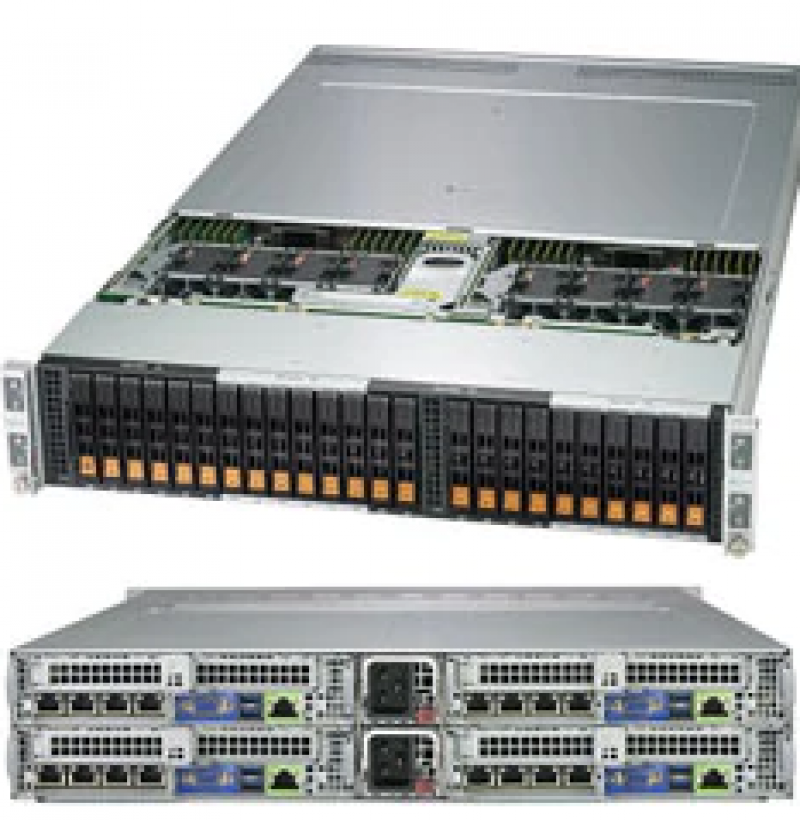

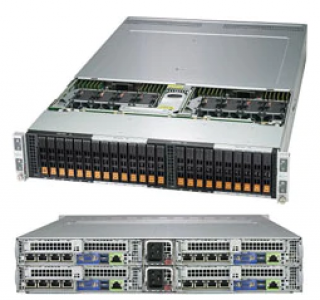

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2666MHz
6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
2600W Redundant Titanium Level (96%) Power Supplies
