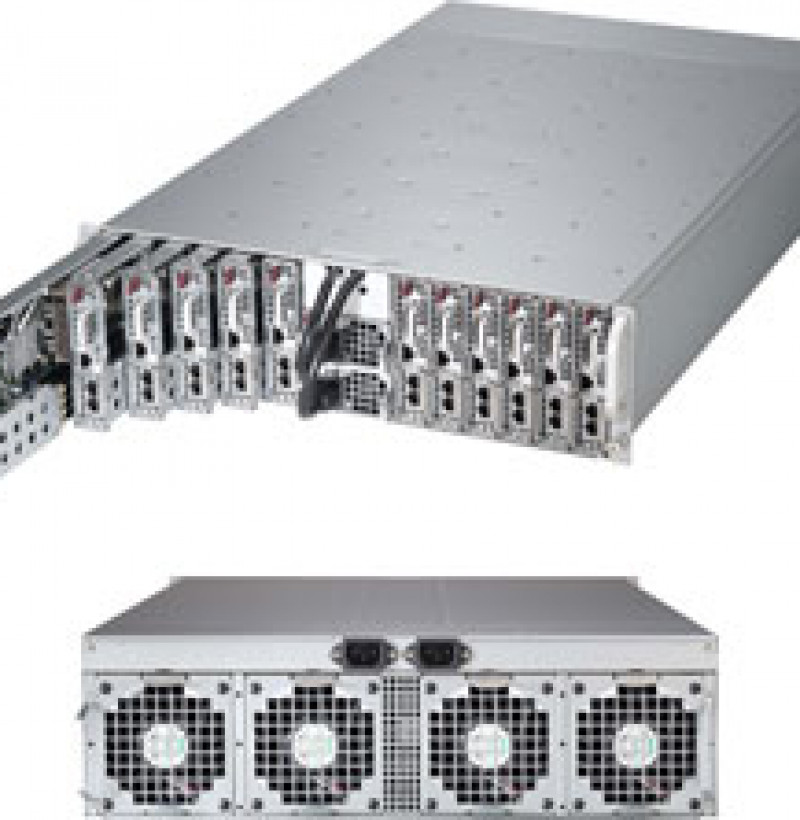

Form Factor: 3U Rackmount
Processor: Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 & Intel® Pentium® family processors***
Up to 69W
Socket H2 (LGA 1155)
Memory: Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM)
Hard Drive: 2x 3.5" SATA3 HDDs per node; up to 24x 3.5" HDDs total (SW RAID 0, 1) OR
4x 2.5" SATA (2x SATA3 + 2x SATA2) HDDs per node; up to 48x 2.5" HDDs total (SW RAID 0, 1, 10)
Enterprise SATA HDD only recommended
Raid Controller: SW RAID 0, 1, 10
Ethernet: Intel® i350 GbE controller
Remote Management: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Power Supply: 1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
3U Rackmount
Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 & Intel® Pentium® family processors***
Up to 69W
Socket H2 (LGA 1155)
Intel® C204 PCH chipset*
4x 240-pin DDR3 DIMM sockets
Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM)
1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
2x 3.5" SATA3 HDDs per node; up to 24x 3.5" HDDs total (SW RAID 0, 1) OR
4x 2.5" SATA (2x SATA3 + 2x SATA2) HDDs per node; up to 48x 2.5" HDDs total (SW RAID 0, 1, 10)
Enterprise SATA HDD only recommended
SW RAID 0, 1, 10
Intel® i350 GbE controller
Dual RJ-45 connectors
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Intel® I/O Acceleration Technology (I/O AT)
MicroLP Adapter Matrix (Networking options)
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Matrox G200eW 16MB DDR2
1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
