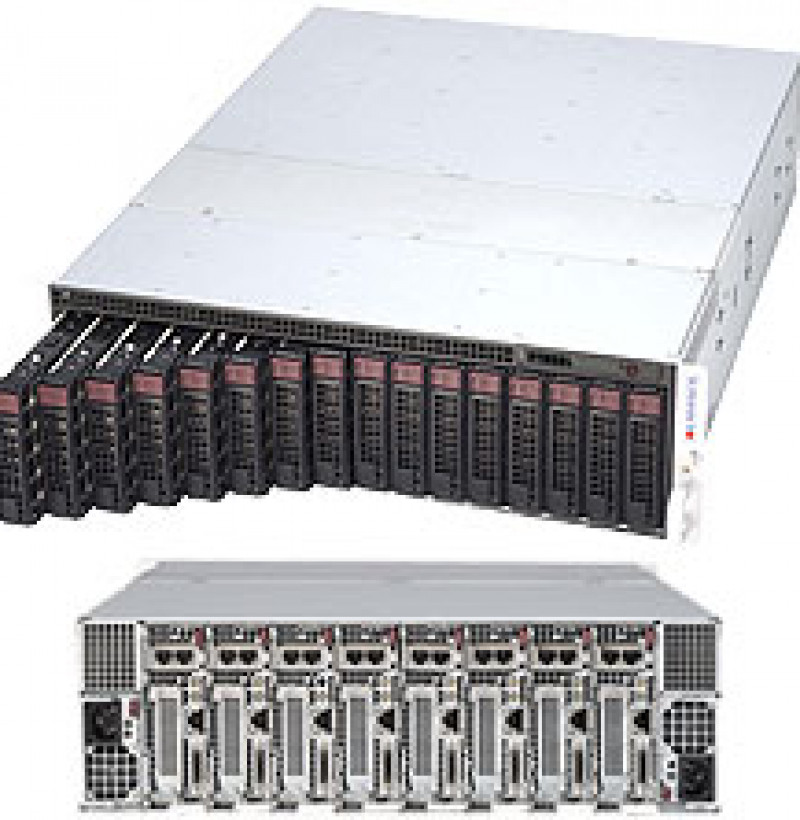

Form Factor: 3U Rackmount
Processor: Single Socket R (LGA 2011)
Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
(up to 12 cores and up to 130W)
Memory: Supports up to 128 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Hard Drive: 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended
Raid Controller: 1x SATA DOM
SATA 3.0 6Gbps with RAID 0, 1
Ethernet: Intel® i350, 2x Gigabit LAN ports
Remote Management: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Power Supply: 1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
3U Rackmount
Single Socket R (LGA 2011)
Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
(up to 12 cores and up to 130W)
Intel® C602J Chipset
4x 240-pin DDR3 DIMM sockets
Supports up to 128 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
1866/1600/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
Enterprise SATA HDD only recommended
1x SATA DOM
SATA 3.0 6Gbps with RAID 0, 1
Intel® i350, 2x Gigabit LAN ports
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Nuvoton WPCM450 BMC
Matrox G200eW 16MB DDR2
1 (x8) PCI-E 3.0 Low-profile slot
MicroLP Adapter Matrix (Networking options)
AOC Compatibility Matrix
1620W high-efficiency redundant power supply w/ PMBus
Platinum Certified
