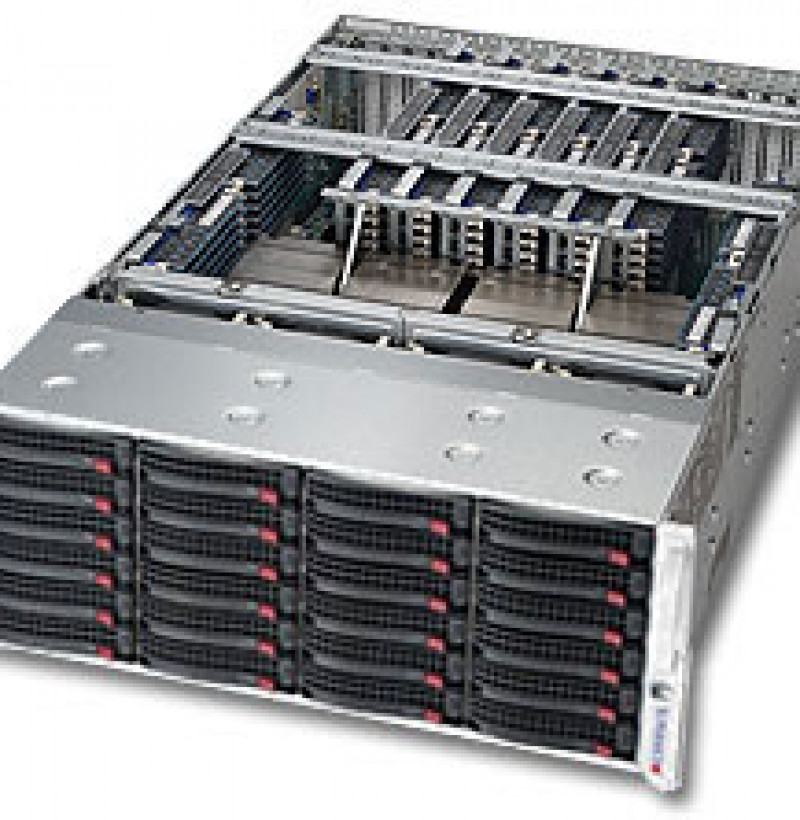

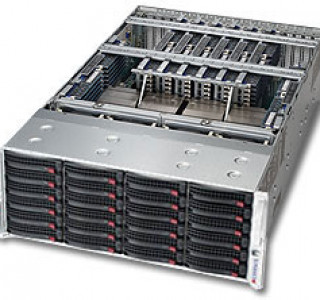

Supermicro Superserver  8048B-TRFT

Giá bán (chưa VAT): 0

Thương hiệu: Supermicro

Bảo hành: 24 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

  • Form Factor: 4U
  • Processor: Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v3 /E7-4800 v3 family (18-Core), w/ QPI up to 9.6 GT/s
  • Memory:  Up to 6TB DDR3 1600MHz ECC RDIMMs and LRDIMMs; 96x DIMM slots
  • Hard Drive: 24x 3.5" Hot-swap SAS2/SATA3 HDD
  • Raid Controller: SATA3 (6Gbps) with RAID 0, 1
  • SATA2 (3Gbps) with RAID 0, 1, 5, 10
  • Ethernet: Intel® X540 Dual Port 10GBase-T
  • Remote Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Power Supply: 1620W Redundant (N+1) Power Supplies, Platinum Level (94%)

Form Factor

4U Rackmount

Processor

Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v3 /E7-4800 v3 family (18-Core), w/ QPI up to 9.6 GT/s

Chipset

Intel® C602J chipset

Memory

96x 288-pin DDR4 DIMM slots
Supports up to 6TB DDR4 ECC RDIMM/LRDIMM in 96 DIMM slots
1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs

Hard Drive

24x 3.5" drive bays
4x 2.5" Fixed internal drive bays
BPN-SAS-846A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2

Raid Controller

SATA3 (6Gbps) with RAID 0, 1
SATA2 (3Gbps) with RAID 0, 1, 5, 10

Ethernet

Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

Remote Management

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED 2400

Graphics

ASPEED 2400

Expansion Slots

11x PCI-E 3.0 slots w/ 48 memory slots
(4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
8x PCI-E 3.0 slots w/ 96 memory slots
(4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)

Power Supply

1620W high-efficiency redundant power supply w/ PMBus
