Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 NVMe and 1 SIOM card per node).
Key Features
- Compute Intensive Application
- HPC, Data Center
- Enterprise Server
- Financial Analysis
- Mission-critical applications

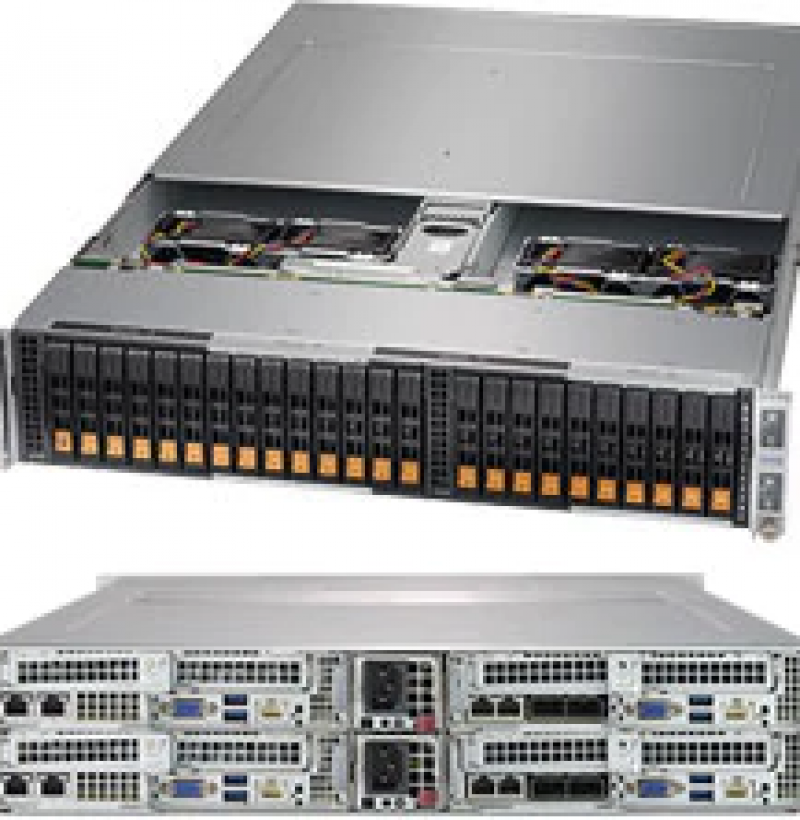

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" NVMe drive bays
6. Video via Aspeed AST2400 BMC
7. 4x 8cm heavy duty PWM fans with air shroud
8. 2200W Redundant Power Supplies Titanium Level
9. 2 M.2 Cards support
