Add-on Card AOC-MGP-i4M

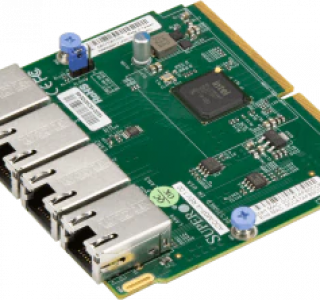

Add-on Card AOC-MGP-i4M

Giá bán (chưa VAT): 2.139.000

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

• General

   - Intel® i350 GbE controller

   - Super I/O Module (SIOM) Form Factor

   - Quad RJ45 ports

   - Intel® I/O Acceleration Technology (Intel® I/OAT)



• Ethernet Features

   - IEEE 802.3 auto-negotiation for speed, duplex, and flow      control

   - IEEE 802.3x and 802.3z compliant flow control support

   - Automatic cross-over detection function (MDI/MDI-X)

   - 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY

     specifications Compliant

   - IEEE 1588 protocol and 802.1AS implementation



• Power Management and Efficiency

   - Energy Efficient Ethernet (EEE)

   - DMA Coalescing reduces platform power consumption

   - Active State Power Management (ASPM) support

   - LAN disable function

   - MAC Power Management controls

   - Low Power Link Up - Link Speed Control



• Virtualization Features

   - PC-SIG SR-IOV support

   - VM to VM Packet forwarding (Packet Loopback)

   - Flexible Port Partitioning

   - IEEE 802.1q VLAN support

   - IEEE 802.1q advanced packet filtering

   - Jumbo Frames support



• Performance Features

   - TCP/UDP, IPv4 and IPv6 checksum offloads to improve

     CPU usage

   - Low Latency Interrupts

   - Tx TCP segmentation offload (IPv4, IPv6) increases

     throughput and lowers processor usage

   - Receive Side Scaling (RSS) for Windows environment,

     Scalable I/O for Linux environments

   - Intelligent interrupt generation



• Management Features

   - Preboot eXecution Environment (PXE) support

   - iSCSI Remote Boot Support

   - Asset Management support on Supermicro® platforms

   - Controller asset tags such as part number, revision,

     serial number, and MAC addresses

   - NC-SI for remote management



• OS Support

   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)

   - Windows 8.1, 8, 7 (x64 Edition)

   - RedHat Linux

   - SUSE Linux

   - FreeBSD

   - UEFI

   - VMWare



• Cables Support

   - RJ45 Category 5/5e up to 100m



• Power Consumption

   - Typical 3.7W, Maximum 4.4W



• Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity

     at 35°C



• Physical Dimensions (W x D)

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)



• Supported Platforms

   - Supermicro® motherboards with Super I/O Module slot

   - Supermicro® server systems with Super I/O Module slot

Tài liệu kỹ thuật

Driver

Loại Driver Tên driver Hệ điều hành Download
