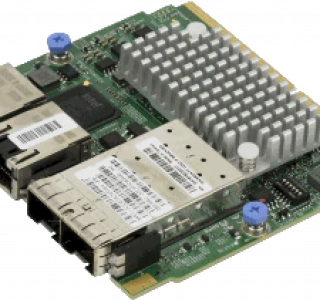

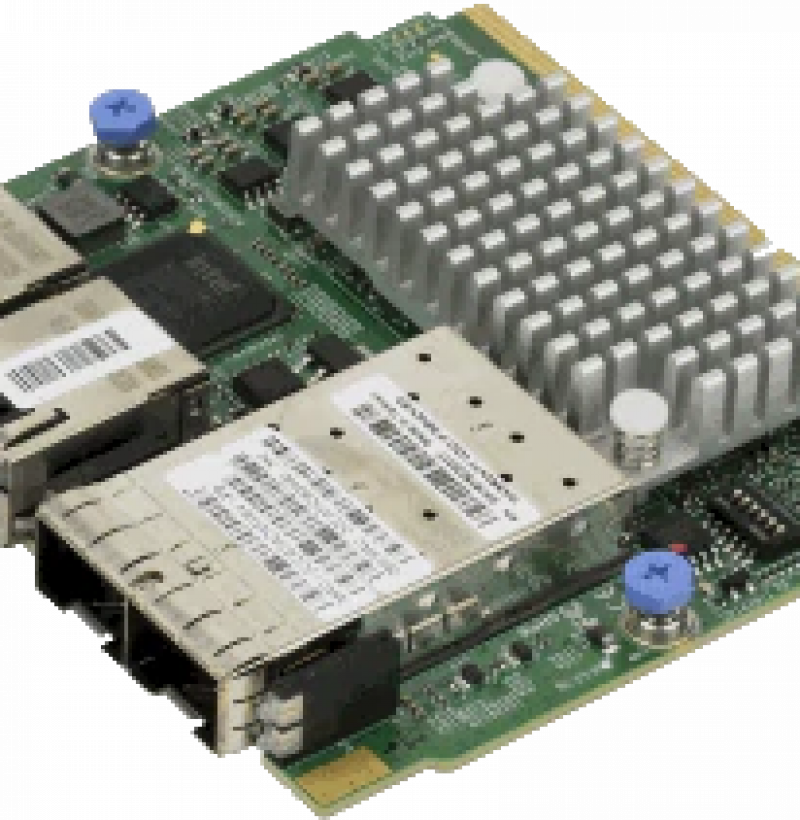

Add-on Card AOC-MH25G-b2S2G

Add-on Card AOC-MH25G-b2S2G

Giá bán (chưa VAT): 4.420.000

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

25GbE Specifications


• Networking Features

   - Jumbo frames

   - 802.3x flow control

   - Link Aggregation (802.3ad)

   - Virtual LANs- 802.1q VLAN tagging

   - Configurable Flow Acceleration

   - IEEE 1588 and Time Sync

• Stateless Offload Features:

   - TCP, UDP, IPv4, IPv6 checksum offload

   - Large Send Offload

   - Receive Segment Coalescing

   - TCP Segmentation Offload

   - Large Receive Offload

   - Receive Side Scaling (RSS)

   - Transmit Side Scaling (TSS)

• NIC Partitioning (NPAR):

   - 16 Physical Functions

   - QoS per partition

   - Partitioning control via sideband communication

   - Up to 64 MAC/VLAN filter per partition

   - Per partition statistics support

   - Stateless offloads configuration per partition

   - VEB/VEPA support

• Virtualization Features:

   - NetQueue, VMQueue, and Multiqueue

   - Support for 128 Virtual Functions

   - VXLAN, NVGRE and Geneve

   - Edge Virtual Bridging (EVB)

• RDMA over Converged Ethernet (RoCE):

   - RoCEv1 and RoCEv2

   - Data Center Bridging with RoCE

• Flow Processing:

   - Exact/Wildcard Match Flow Lookup

   - VLAN insertion/deletion

   - NAT/NAPT

   - Mirroring

• Data Center Bridging:

   - Priority-based flow control (PFC; IEEE 802.1Qbb)

   - Enhanced transmission selection (ETS; IEEE 802.1Qau)

   - Quantized congestion Notification (QCN; IEEE 802.1Qau)

   - Data Center Bridging Capability eXchange

      (DCBX; IEEE 802.1Qaz)

   - 8 traffic classes per port; fully DCB compliant per 802.1Qbb

• Power Savings:

   - ACPI compliant power management

   - PCI Express Active State Power Management (ASPM)

   - Ultra low-power mode

   - Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)



GbE Specifications

• Ethernet Features:

   - IEEE 802.3 auto-negotiation for speed, duplex, and flow control

   - IEEE 802.3x and 802.3z compliant flow control support

   - Automatic cross-over detection function (MDI/MDI-X)

   - 1Gb/s Ethernet IEEE 802.3, 802.3u,802.3ab PHY

      specifications Compliant

   - IEEE 1588 protocol and 802.1AS implementation

• Power Management and Efficiency:

   - Energy Efficient Ethernet (EEE)

   - DMA Coalescing reduces platform power consumption

   - Active State Power Management (ASPM) support

   - LAN disable function

   - MAC Power Management controls

   - Low Power Link Up - Link Speed Control

• Virtualization Features:

   - PC-SIG SR-IOV support

   - VM to VM Packet forwarding (Packet Loopback)

   - Flexible Port Partitioning

   - IEEE 802.1q VLAN support

   - IEEE 802.1q advanced packet filtering

   - Jumbo Frames support

• Performance Features:

   - TCP/UDP, IPv4 and IPv6 checksum offloads to improve

      CPU usage

   - Low Latency Interrupts

   - Tx TCP segmentation offload (IPv4, IPv6) increases throughput

      and lowers processor usage

   - Receive Side Scaling (RSS) for Windows environment,

      Scalable I/O for Intelligent interrupt generation

• Management Features:

   - Preboot eXecution Environment (PXE) support

   - iSCSI Remote Boot Support

   - NC-SI for remote management

Tài liệu kỹ thuật

Driver

Loại Driver Tên driver Hệ điều hành Download
