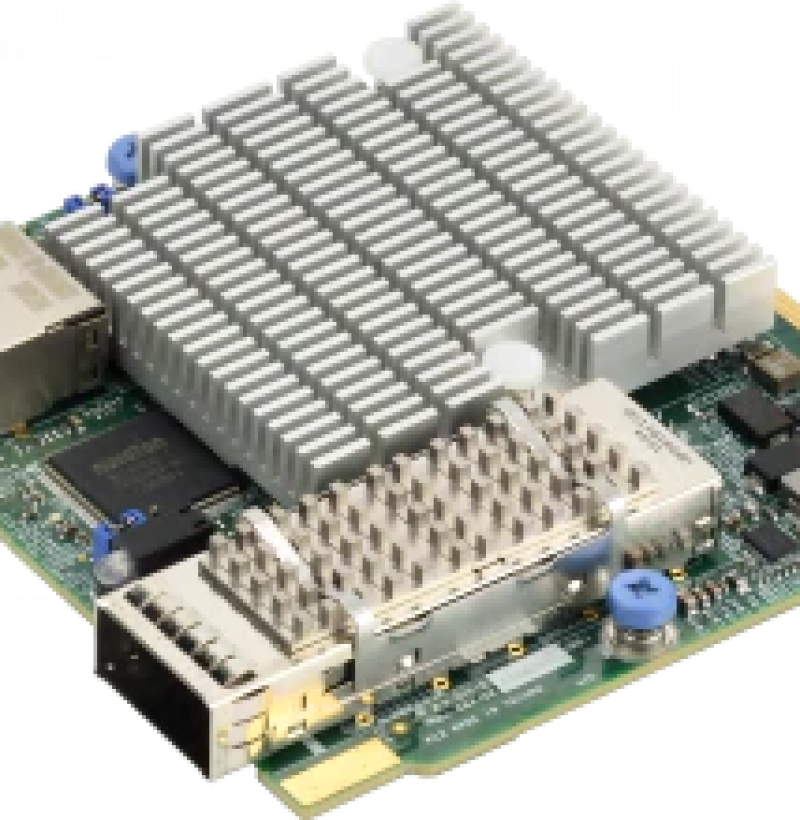

Add-on Card AOC-MHIBE-m1CGM

Add-on Card AOC-MHIBE-m1CGM

Giá bán (chưa VAT): 22.325.000

Thương hiệu: Supermicro

Bảo hành: 0 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

Specifications

  • General
    • Super I/O Module (SIOM) Form Factor
    • Mellanox® ConnectX-4 VPI EDR controller
      • Single QSFP28 port with speed up to 100Gbps per port
    • Intel® i210 GbE controller
      • Single RJ45 port with speed up to 1Gbps per port
  • Cables Support
    • InfiniBand EDR / 100GbE:
      • QSFP28 100Gbps Copper cable
      • Fiber optic cable (with required optional QSFP28 Optical transceiver)
    • GbE: RJ45 Category 5/5e up to 100m
  • Power Consumption
    • Maximum 19W
  • Operating Conditions
    • Operating temperature: 0°C to 55°C (32°F to 131°F)
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35ºC
  • Physical Dimensions
    • Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)

InfiniBand EDR QSFP28 Specifications

Mellanox® ConnectX-4 VPI EDR controller with Single QSFP28 port and speed up to 100Gbps.

  • InfiniBand
    • IBTA Specification 1.3 compliant
    • Hardware-based congestion control
    • 256 to 4Kbyte MTU, 2GB messages
  • Enhanced Features
    • Hardware-based reliable transport
    • Collective operations offloads
    • Mellanox PeerDirectTM RDMA communication acceleration
    • Extended Reliable Connected transport
    • Enhanced Atomic operations
  • Ethernet
    • IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 1588v2
    • Jumbo frame support (9.6KB)
  • Overlay Networks
    • Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks
  • Hardware-based I/O Virtualization
    • Single Root IOV
    • Multi-function per port
    • Address translation and protection
    • Multiple queues per virtual machine
    • Enhanced QoS for vNICs
    • VMware NetQueue support
  • Virtualization
    • SR-IOV: Up to 256 Virtual Functions
    • SR-IOV: Up to 16 Physical Functions per port
  • CPU Offloads
    • RDMA over Converged Ethernet (RoCE)
    • TCP/UDP/IP stateless offload
    • LSO, LRO, checksum offload
    • Intelligent interrupt coalescence
  • Remote Boot
    • Remote boot over InfiniBand
    • Remote boot over Ethernet
    • Remote boot over iSCSI
    • PXE and UEFI
  • Protocol Support
    • OpenMPI, IBM PE, OSU MPI (MVAPICH/2), Intel MPI,
    • Platform MPI, UPC, Mellanox SHMEM
    • TCP/UDP, EoIB, IPoIB, SDP, RDS, MPLS, VxLAN, NVGRE, GENEVE
    • SRP, iSER, NFS RDMA, SMB Direct
    • uDAPL
  • Operating System Support
    • Linux
    • Windows
    • FreeBSD
    • VMware

GbE RJ45 Specifications

Intel® i210 GbE controller with Single RJ45 port and speed up to 1Gbps.

  • Performance and Efficiency Features
    • Energy Efficient Ethernet (EEE)
    • Jumbo Frames support
    • TCP/UDP, IPv4 checksum offloads
    • IPv6 support for IP/TCP and IP/UDP receive checksum offload
    • Low Latency Interrupts
  • Manageability Features
    • NC-SI
  • Operating System Support
    • Linux
    • Windows
    • FreeBSD
    • VMware
