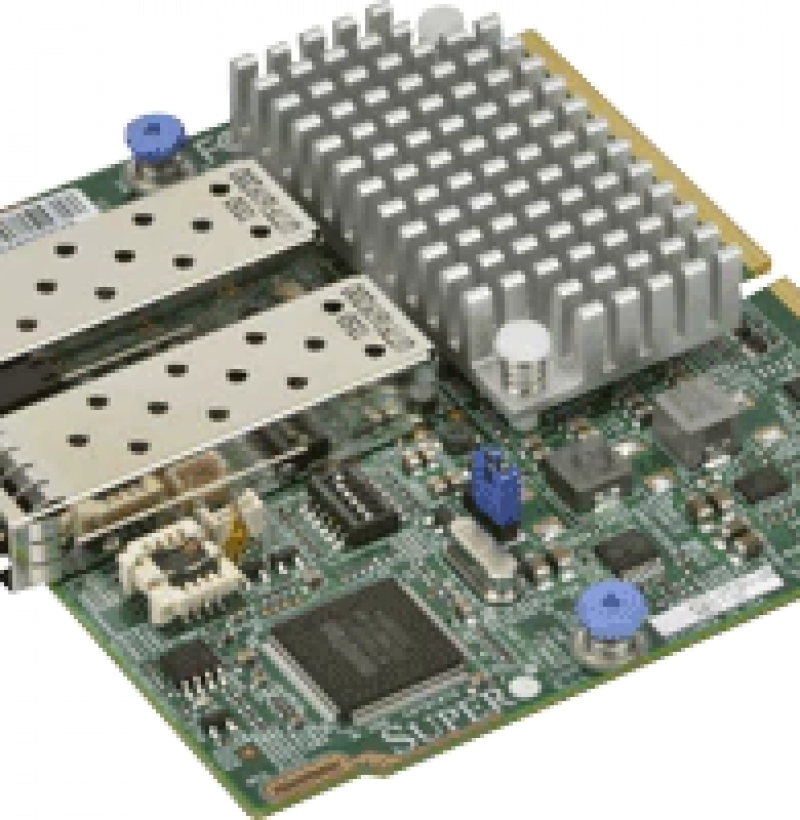

Add-on Card AOC-MTGN-i2SM

• General

   - Intel® 82599ES 10GbE controller

   - Super I/O Module (SIOM) Form Factor

   - Dual SFP+ ports

   - Load balancing on multiple CPUs

   - iSCSI remote boot support

   - Fibre Channel over Ethernet (FCoE) support

   - Intel® PROSet Utility for Windows® Device Manager

   - Time Sync IEEE 1588



• I/O Features

   - Direct Cache Access (DCA) to avoid cache misses

   - MSI-X support to minimize the overhead of interrupts,

     allowing load-balancing between multiple cores/CPUs

   - Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities

      (IPv4, IPv6)

   - Receive and Transmit Side Scaling for Windows environments

     and scalable I/O for Linux environments



• Virtualization Features

   - VMDq, Next-Generation VMDq (64 queues per port)

   - PC-SIG SR-IOV implementation (64 virtual functions per port)

   - Advanced Packet Filtering

   - VLAN support to allow creation of multiple VLAN segments

   - VXLAN through Software



• Management Features

   - Preboot eXecution Environment (PXE) support

   - Simple Network Management Protocol (SNMP) and Remote

     Network Monitoring (RMON) statistics counters

   - iSCSI remote boot

   - NC-SI for remote management

   - Asset Management support on Supermicro® platforms

   - Controller asset tags such as part number, revision, serial

     number, and MAC addresses



• Advanced Software Features

   - Teaming support

   - IEEE 802.3ad (link aggregation control protocol)

   - IEEE 802.1Q VLANs

   - IEEE 802.3 2005 flow control support



• OS Support

   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)

   - Windows 8.1, 8, 7 (x64 Edition)

   - RedHat Linux

   - SUSE Linux

   - FreeBSD

   - UEFI

   - VMware



• Cables Support

   - SFP+ direct attach twinaxial copper cables up to 7m

   - Fiber-optic cables (with required optional SFP+ transceivers)



• Power Consumption

   - Typical power consumption: 6.2W

   - Maximum power consumption: 7.2W



• Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C



• Physical Dimensions (L x H)

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
