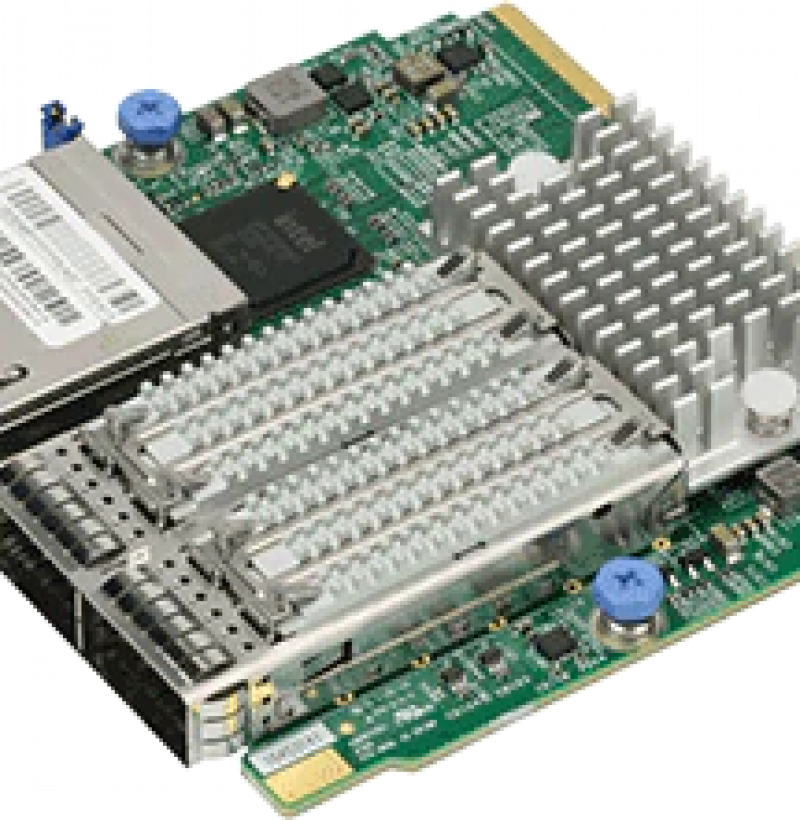

Add-on Card AOC-MHIBF-m2Q2G

Add-on Card AOC-MHIBF-m2Q2G

Giá bán (chưa VAT): 15.395.000

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

Specifications


• General:

   - Super I/O Module (SIOM) Form Factor

   - Mellanox® ConnectX-3 Pro FDR controller

   - Intel® i350 GbE controller

   - Dual QSFP ports and Dual RJ45 port

• Cables Support:

   - InfiniBand FDR: QSFP 56Gbps Copper cables

   - GbE: RJ45 Category 5/5e up to 100m

• Power Consumption:

   - Maximum 11W

• Operating Conditions:

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C


• Physical Dimensions (L x H):

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)



InfiniBand FDR QSFP Specifications

• Connectivity:

   - Interoperable with InfiniBand or 40GbE switches

   - Passive copper cable with ESD protection

• InfiniBand:

   - IBTA Specification 1.2.1 compliant

   - Hardware-based congestion control

   - 256 to 4Kbyte MTU, 2GB messages

• Enhanced InfiniBand:

   - Hardware-based reliable transport

   - Collective operations offloads

   - Hardware-based reliable multicast

   - Extended Reliable Connected transport

   - Enhanced Atomic operations

• Ethernet:

   - IEEE 802.3ba 40 Gigabit Ethernet

   - IEEE Std 802.3ad Link Aggregation

   - IEEE Std 802.3az Energy Efficient Ethernet

   - IEEE Std 802.1Q, .1P VLAN tags and priority

   - IEEE P802.1bb D1.0 Priority-based Flow Control

   - IEEE 1588

   - Jumbo frame support (9600B)

• Hardware-based I/O Virtualization:

   - Single Root IOV

   - Address translation and protection

   - Dedicated adapter resources

   - Multiple queues per virtual machine

   - Enhanced QoS for vNICs

   - VMware NetQueue support

• Overlay Networks:

   - VXLAN and NVGRE

• Additional CPU Offloads:

   - RDMA over Converged Ethernet

   - TCP/UDP/IP stateless offload

   - Intelligent interrupt coalescence

• FlexBoot Technology:

   - Remote boot over InfiniBand

   - Remote boot over Ethernet

   - Remote boot over iSCSI

• Protocol Support:

   - Open MPI, OSU MVAPICH, Intel MPI, MS

   - MPI, Platform MPI

   - TCP/UDP, EoIB, IPoIB, RDS

   - SRP, iSER, NFS RDMA

   - uDAPL

• Operating System Support:

   - Citrix XenServer 6.1

   - RHEL/CentOS 5.X and 6.X, Novell SLES10 SP4; SLES11 SP1,

     SLES 11 SP2, OEL, Fedora 14, 15, 17, Ubuntu 12.04

   - Windows Server 2008/2012/2012 R2

   - FreeBSD

   - OpenFabrics Enterprise Distribution (OFED)

   - OpenFabrics Windows Distribution (WinOF)

   - VMware ESXi 4.x and 5.x


GbE RJ45 Specifications

• Ethernet and Virtualization Features:

   - PC-SIG SR-IOV support

   - Jumbo Frames support

• Performance and Efficiency Features:

   - Energy Efficient Ethernet (EEE)

   - TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU

     usage

   - Low Latency Interrupts

• Management Features:

   - Asset Management support on Supermicro® platforms

   - Preboot eXecution Environment (PXE) support

   - iSCSI Remote Boot Support

   - NC-SI for Remote Management via Intel® i350 GbE RJ45

     connector

• Operating System Support:

   - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)

   - Windows 8.1, 8, 7 (x64 Edition)

   - RedHat Linux

   - SUSE Linux

   - FreeBSD

   - UEFI

   - VMware

Tài liệu kỹ thuật

Driver

Loại Driver Tên driver Hệ điều hành Download
