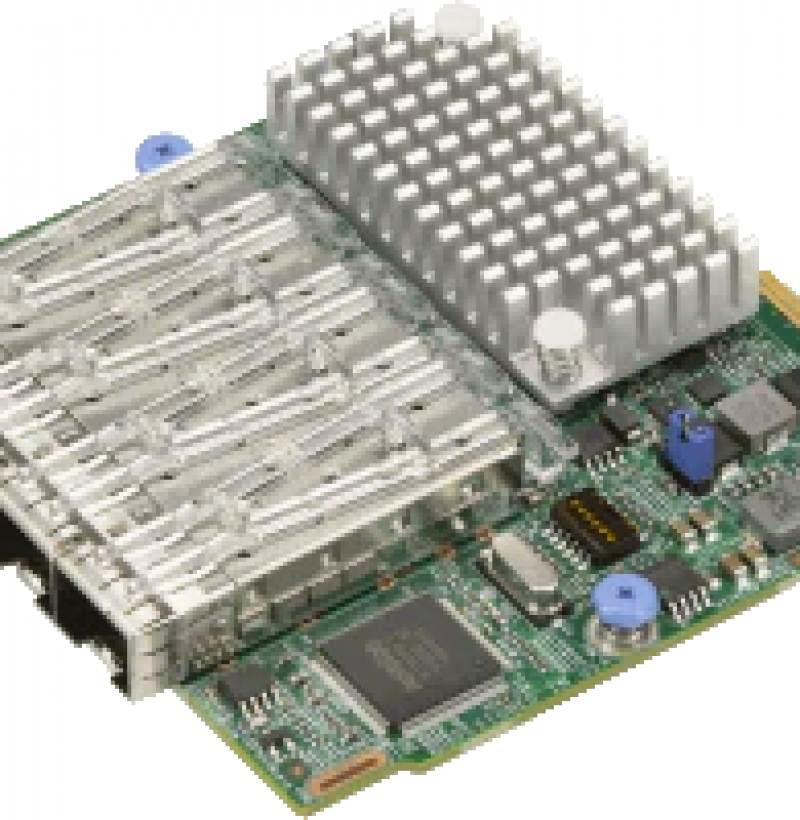

Add-on Card AOC-MTG-i4SM

• General

   - Intel® XL710 controller

   - Super I/O Module (SIOM) Form Factor

   - Quad SFP+ connectors with speed up to 10Gbps per port

   - Load balancing on multiple CPUs

   - Intel® PROSet Utility for Windows Device Manager

   - Time Sync (IEEE 1588)

   - Energy Efficient Ethernet (EEE)



• I/O Features

   - Intel® Flow Director

   - MSI-X support

   - Multiple Queues: 1,536 TX and RX queues per port

   - Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6)

     capabilities

   - Jumbo Frame (9.5KB)



• Virtualization Features

   - Next-Generation VMDq with up to 256 VMDq VMs supported

   - PCI-SIG SR-IOV with up to 128 virtual ports

   - Virtual Machine Load Balancing (VMLB)

   - Advanced Packet Filtering

   - VLAN support for up to 4096 VLAN tags

   - VXLAN and NVGRE support



• Storage Interface Features

   - Preboot eXecution Environment (PXE) support

   - iSCSI remote boot

   - Simple Network Management Protocol (SNMP) and Remote

     Network Monitoring (RMON) static counters



• Management Features

   - Asset Management support on Supermicro® platforms

   - Controller asset tags such as part number, revision, serial

     number, and MAC addresses

   - Controller thermal sensor

   - NC-SI for remote management



• Advanced Software Features

   - Teaming support

   - IEEE 802.3ad (link aggregation control protocol)

   - IEEE 802.1Q VLANs

   - IEEE 802.3 2005 flow control support

   - TCP segmentation/large send offload

   - Interrupt moderation



• OS Support

   - Windows® Server 2012 R2, 2012, 2008 R2 X86-64

   - Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64

   - Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64

   - FreeBSD 9 and 10 IA-32, X86-64, and IA-64

   - UEFI 2.1 and 2.3 X86-64 and I-64

   - VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64



• Cable Support

   - SFP+ direct attach twinaxial copper cables up to 7m

   - Fiber-optic cables (with required optional SFP+ transceivers)



• Power Consumption

   - Typical power consumption: 4W

   - Maximum power consumption: 7W



• Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C



• Physical Dimensions

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
