Add-on Card AOC-S3108L-H8iR

Add-on Card AOC-S3108L-H8iR

Giá bán (chưa VAT): 13.080.000

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

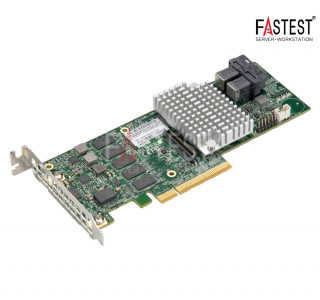

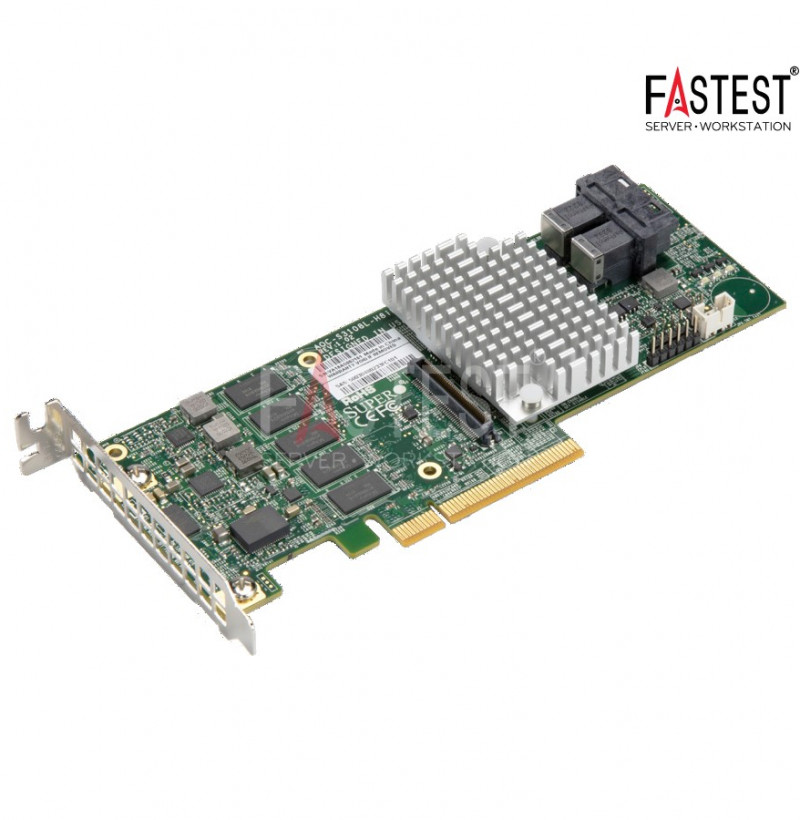

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Use a Broadcom 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.

Using expander backplanes, the AOC-S3108L-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60. The AOC-S3108L-H8iR-16DD supports up to 16 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

Key Features

  • Broadcom 3108 8-port PCI-E SAS-3 controller
  • 8-port (8 internal) 12Gb/s per port
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Supercap/TFM Unit for cached data protection BTR-TFM8G-LSICVM02 (See "Optional Parts List" below for more details)
  • OS Support : Windows (2012, Server 2016 , Server 2019, 8 and 8.1), Linux RHEL, Ubuntu and SUSE
  • Uses 2 MiniSAS HD (SFF-8643) connectors
  • Operating Temp: 10° to 55°C

Tài liệu kỹ thuật

Driver

Loại Driver Tên driver Hệ điều hành Download
