Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of Server storage applications.
- Connect up to 128 SATA or SAS drives with four internal 12Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection.
Product | Ordering Part # | What's in the box |

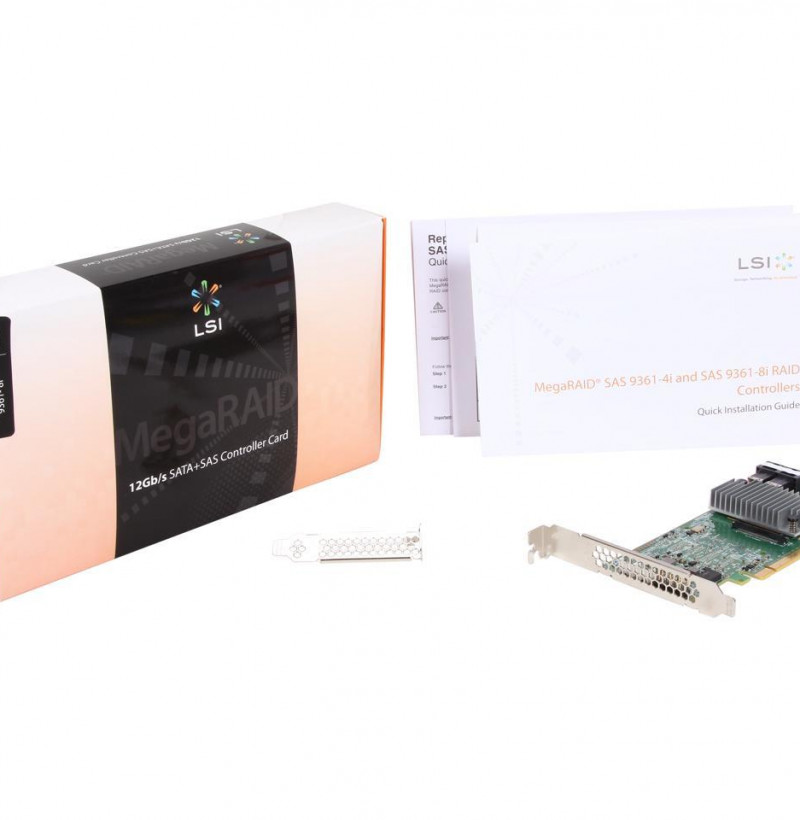

MegaRAID SAS 9361-8i | LSI00417 | MegaRAID SAS 9361-8i, QIG, LP bracket |
Specifications | Value | |
RAID-on-Chip Controller | LSISAS3108 dual core RAID on Chip (ROC) | |
RAID Management Software | MegaRAID Storage Manager StorCLI (command-line interface) CTRL-R (BIOS configuration utility) HII (UEFI Human Interface Infrastructure) |
|
Cache Protection | Optional CacheVault Flash Module (LSICVM02) | |
Physical Dimensions | 6.6" x 2.536" (Low-Profile) | |
Host Bus Type | x8 lane PCI Express® 3.0 | |
Cache Memory | 1GB 1866MHz DDRIII SDRAM | |
Internal Ports | 8 | |
Data Transfer Rates | Up to 12Gb/s per port | |
Devices Supported | Up to 128 SAS and/or SATA hard drives and SSDs | |
Internal Connectors | 2 HD Mini-SAS SFF8643 (Horizontal mount) | |
MTBF | >1,343,187 hours | |
Operating Temperature | Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°C | |
Operating Voltage | +3.3V, +12V | |
Operating Systems | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support | |
Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 |
