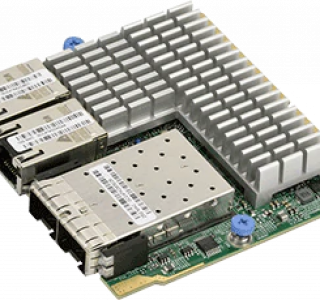

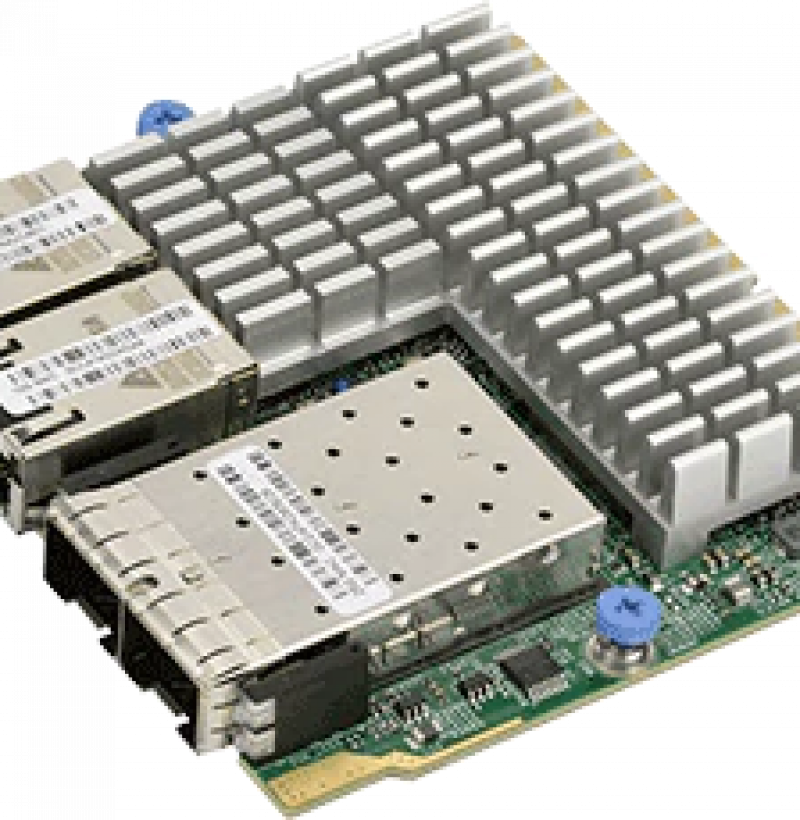

Add-on Card AOC-MH25G-m2S2T / AOC-MH25G-m2S2TM

Add-on Card AOC-MH25G-m2S2T / AOC-MH25G-m2S2TM

Giá bán (chưa VAT): 6.795.000

Thương hiệu: Supermicro

Bảo hành: 36 tháng

Vận chuyển: Miễn phí nội thành (15km từ FASTEST)

Controller Specifications

• General

   - Super I/O Module (SIOM) Form Factor

   - Mellanox® ConnectX-4 Lx EN 25GbE controller

     • Dual SFP28 connectors with speed up to 25Gbps per port

   - Intel® X550-AT2 10GbE 10GBase-T controller

     • Dual RJ45 connectors with speed up to 10Gbps per port

• Cables Support:

     - 25GbE SFP28: Direct attach copper cables and Fiber-optic

       cables (with required optional transceivers)

     - 10GbE RJ45: RJ-45 Category-6 up to 55m; Category-6A up to

       100m

• Power Consumption:

     - Maximum 25W

• Operating Conditions

   - Operating temperature: 0°C to 55°C

    (32°F to 131°F)

   - Storage temperature: -40°C to 70°C

    (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative

     humidity at 35°C

• Physical Dimensions

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm

     (3.43in) (W x D)

25GbE SFP28 Specifications

• Ethernet

   - 25GbE / 10GbE / 1GbE

   - IEEE 802.3ad, 802.1AX Link Aggregation

   - IEEE 802.1Q, 802.1P VLAN tags and priority

   - IEEE 1588v2

   - Jumbo frames support (9.6KB)

• Enhanced Features:

   - Hardware-based reliable transport

   - Collective operations offloads

   - Vector collective operations offloads

   - 64/66 encoding

   - Dynamically Connected transport (DCT)

   - Enhanced Atomic operations

   - Support for MSI/MSI-X mechanisms

• Storage Offloads:

   - RAID offload - erasure coding (Reed-Solomon) offload

• CPU Offload Features:

   - RDMA over Converged Ethernet (RoCE)

   - TCP/UDP/IP stateless offload

   - LSO, LRO, checksum offload

   - RSS (can be done on encapsulated packet), TSS,

     HDS, VLAN insertion/stripping, Receive flow

     steering

   - Intelligent interrupt coalescence

• Overlay Networks:

   - Stateless offloads for overlay networks and tunneling protocols

   - Hardware offload of encapsulation and decapsulation of NVGRE

     and VXLAN overlay networks

• Hardware-Based I/O Virtualization:

   - Single Root IOV

   - Multi-function per port

   - Multiple queues per virtual machine

   - VMware NetQueue support

• Virtualization:

   - SR-IOV: Up to 256 Virtual Functions

   - SR-IOV: Up to 16 Physical Functions per port

• Management Features:

   - Remote boot over iSCSI

   - PXE and UEFI

• OS Support:

   - RHEL/CentOS

   - Windows

   - FreeBSD

   - VMware


10GbE RJ45 Specifications

• I/O Features:

   - MXI-X Support

   - Intel Flow Director

   - Low Latency

   - Multiple Queues - 64 Tx and Rx per Port

   - Tx/Rx IP, SCTP, TCP, and UDP Checksum

     Offloading (IPv4, IPv6) Capabilities

   - Tx TCP Segmentation Offload (IPv4, IPv6)

• Network Features:

   - Jumbo frames up to 15.5KB

   - IEEE 802.3az Energy Efficient Ethernet (EEE)

• Virtualization Features:

   - Multi-mode I/O Virtualization Operations

   - VXLAN Stateless Offloads

   - NVGRE Stateless Offloads

   - Virtual Machine Device Queues (VMDq)

   - 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port

   - FPP - 64 VFs Per Port

   - Support for PCI-SIG SR-IOV Specification

   - IEEE 802.1Q VLAN Support

• Management Features:

   - Preboot eXecution Environment (PXE) support

   - iSCSI Remote Boot Support and FCoE

   - NC-SI for remote management

• OS Support:

   - Linux RHEL, Linux SLES

   - Windows

   - FreeBSD

   - VMware
